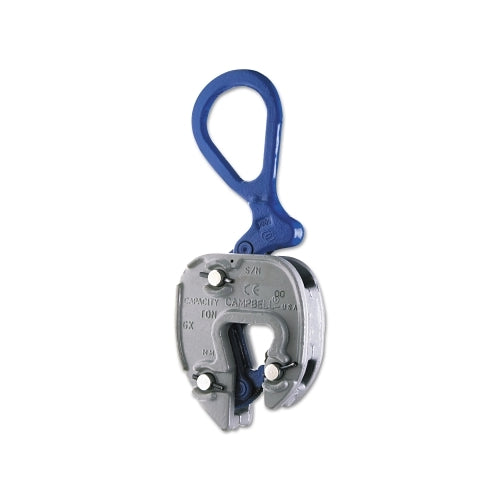

Campbell Gx Clamp, 1 Ton Wwl, 1/16 Inches To 3/4 Inches Grip - 1 per EA - 6423005
Campbell Gx Clamp, 1 Ton Wwl, 1/16 Inches To 3/4 Inches Grip - 1 per EA - 6423005
Regular price
$807.08 USD
Regular price
$1,168.03 USD
Sale price
$807.08 USD
Unit price
per
Shipping calculated at checkout.
SKU: 193-6423005-S
Couldn't load pickup availability
- "GXInches clamp is entirely drop forged and heat treated. 1 per EA
- Can be used for both vertical and horizontal-to-vertical lifting.
- Exclusive feature is a patented wear indicator system.
- When any of cam's straight line. convex teeth are flattened between unique wear indicator grooves. it is time to change the cam.
- Shackle and "GInches link combined into one part for fewer stress points and less chance of side loading damage.
- Grip Cap.
- [Max]=3/4 in.
- Grip Cap.
- [Min]=1/16 in.
- Locking Type=Load Activated.
- Material=Forged Steel.
- Mounting=Fixed Eye.
- Neck Depth=3-1/16 in.
- Type=Plate Clamp.
- Working Load Limit=1 ton.
- "GXInches clamp is entirely drop forged and heat treated.
- Can be used for both vertical and horizontal-to-vertical lifting.
- Exclusive feature is a patented wear indicator system.
- When any of cam's straight line. convex teeth are flattened between unique wear indicator grooves. it is time to change the cam.
- Shackle and "GInches link combined into one part for fewer stress points and less chance of side loading damage.
