Segomo Tools TRMS 6000 Count AC Voltage & Current, Resistance, Continuity & Diode Auto Ranging Digital Clamp Meter - DCM1


$35.99 USD
DCM1-S

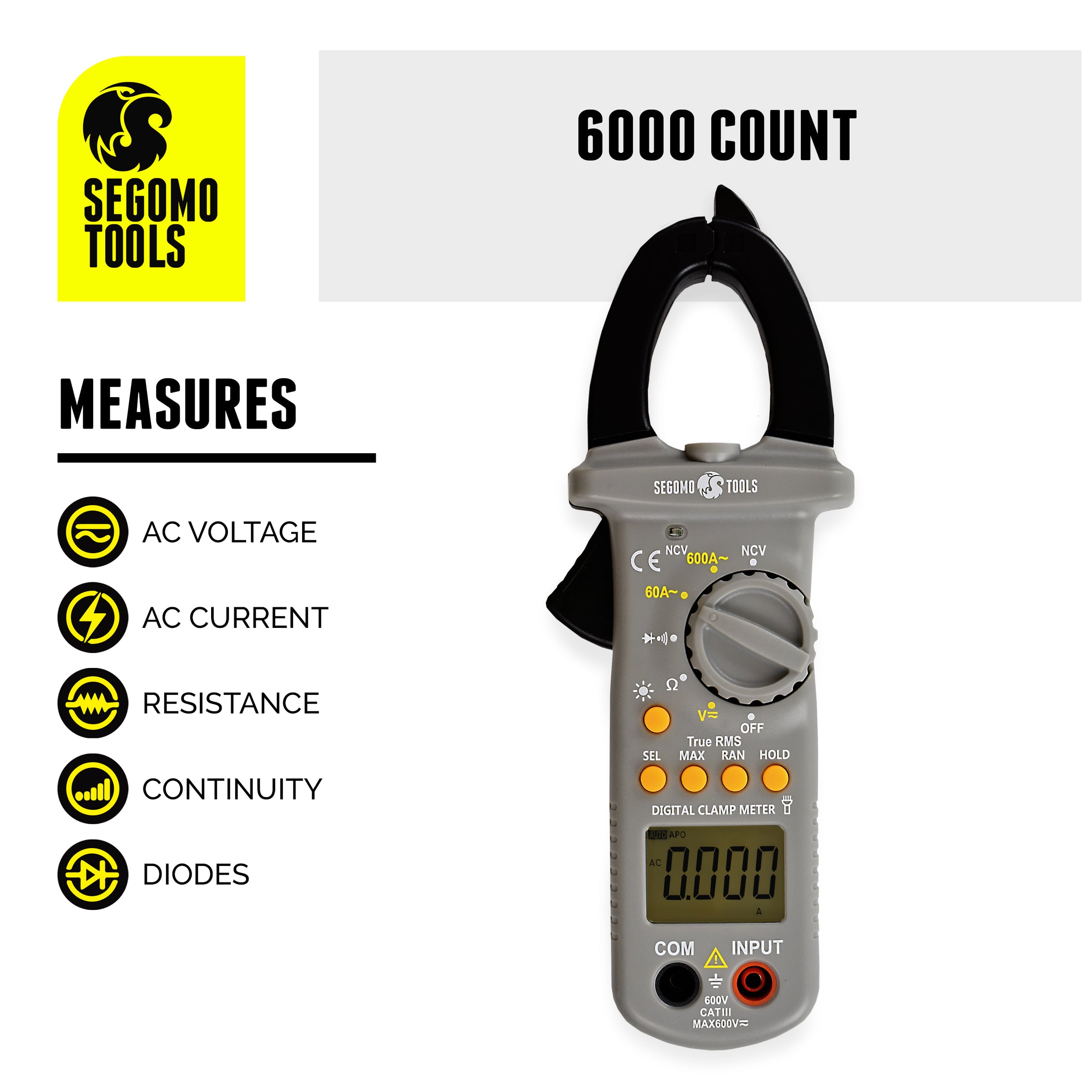

6000 Count

Multi-purpose 6000 count digital clamp meter which safely and accurately measures AC voltage, AC current, resistance, continuity and diodes.

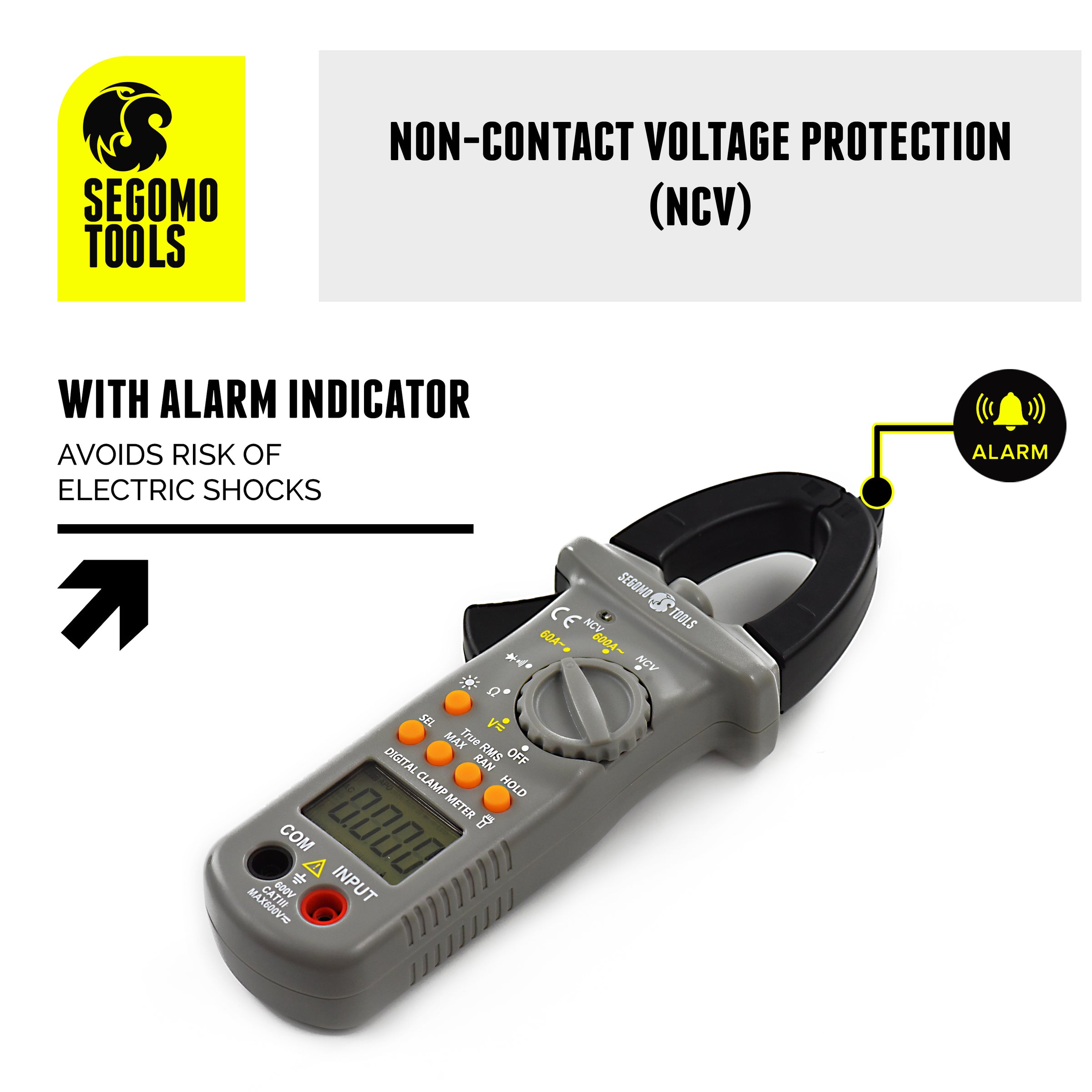

Non-Contact Voltage Detection

Non-contact voltage (NCV) detection function with alarm indicator to detect AC voltage and live wires which avoids the risk of electric shocks.

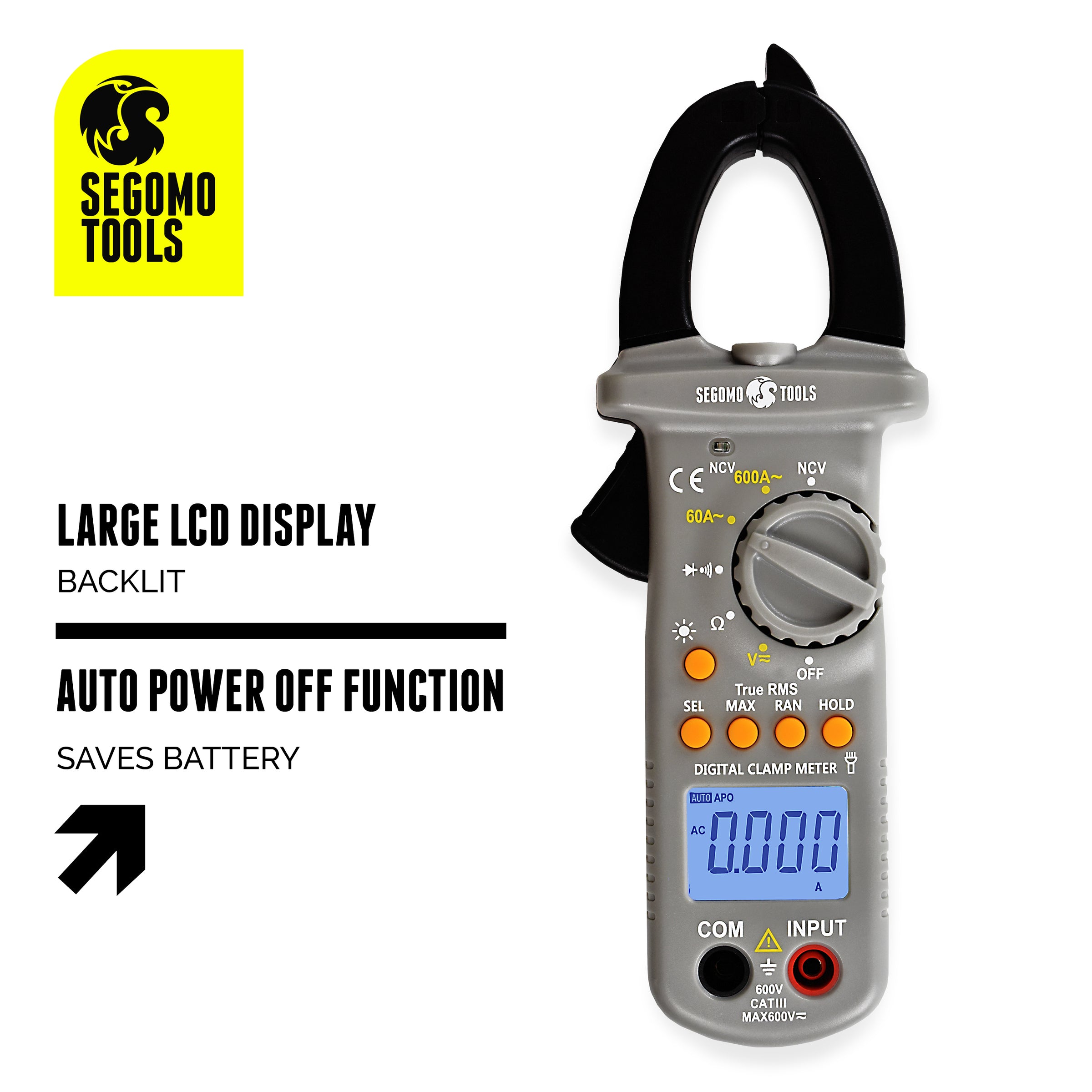

Large Backlit LCD Display

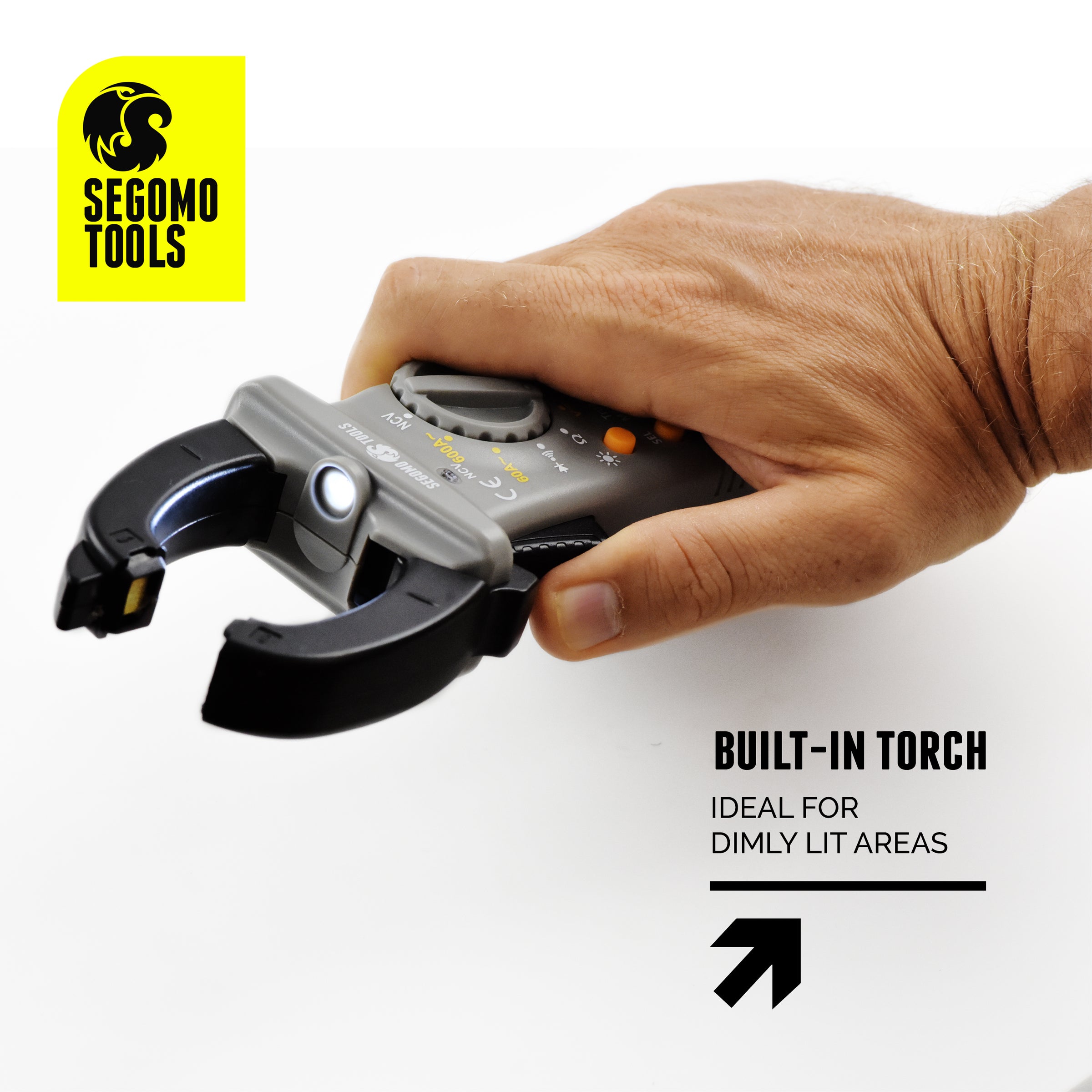

Large backlit LCD display and built-in electric torch for visibility especially in poorly lit areas. Auto power off function after 15 mins of inactivity to save battery allowing for longer use. Overload protection.

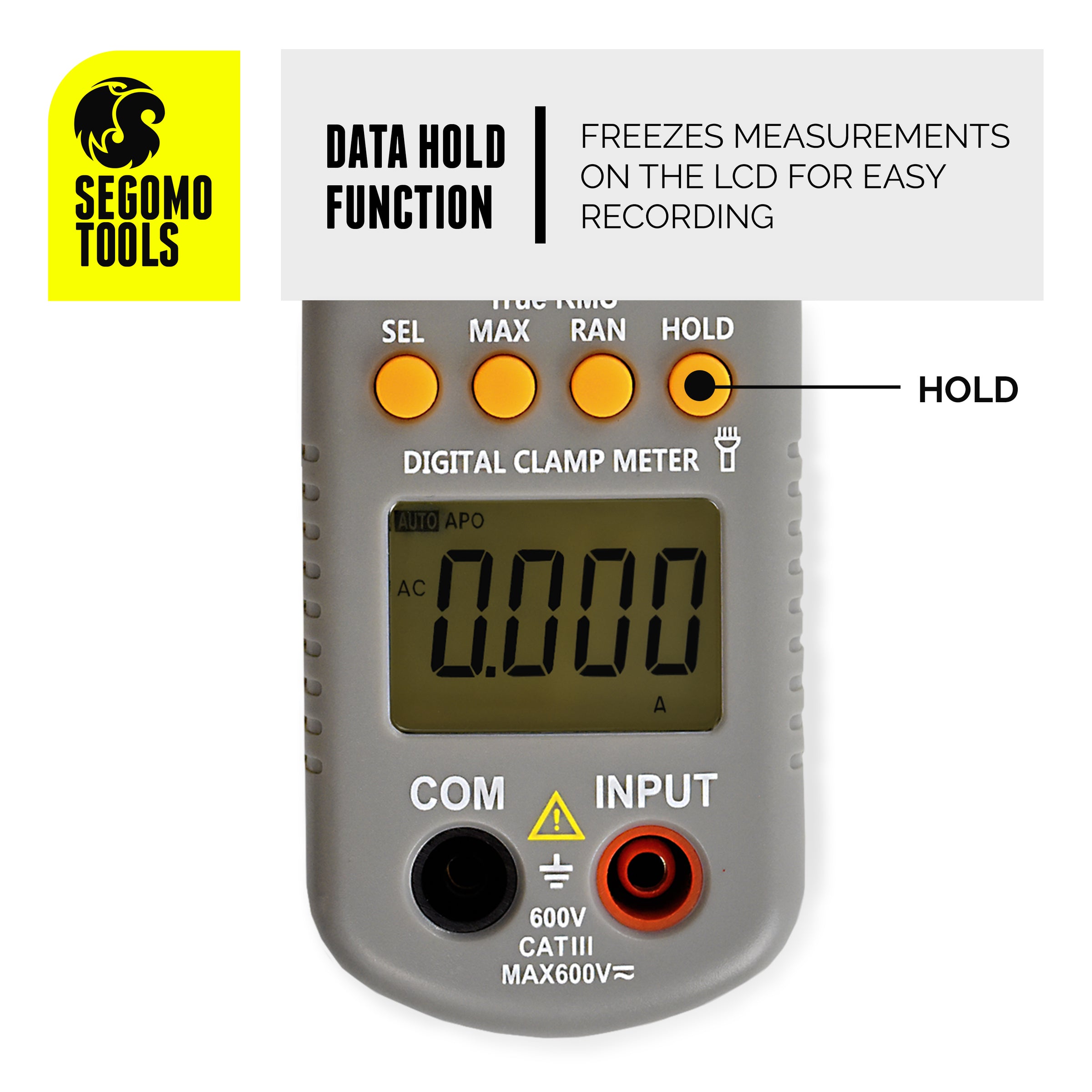

Data Hold Function

Data hold function freezes measurements on the LCD display allowing for easy recording. Multi function for measuring capacitors and transistors.

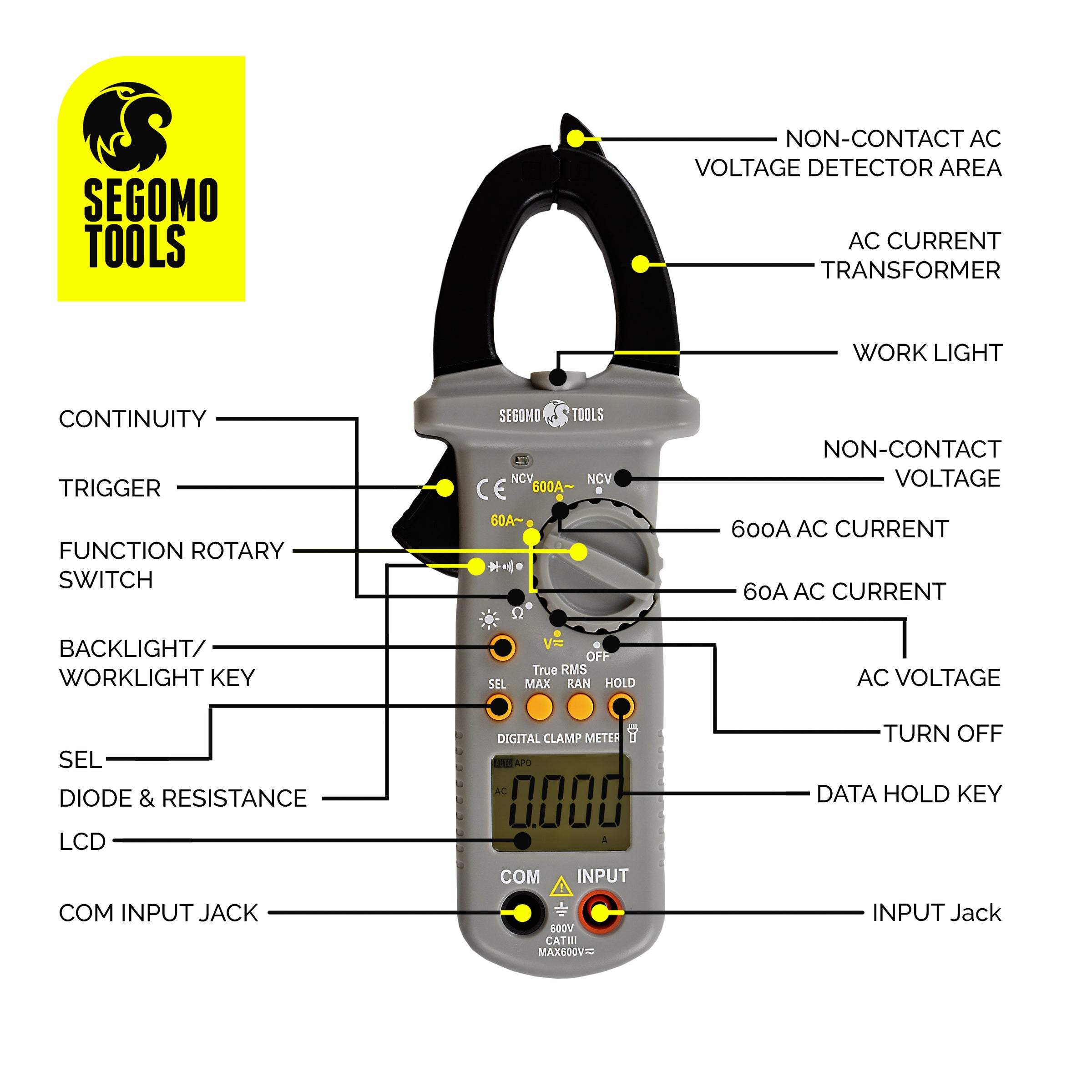

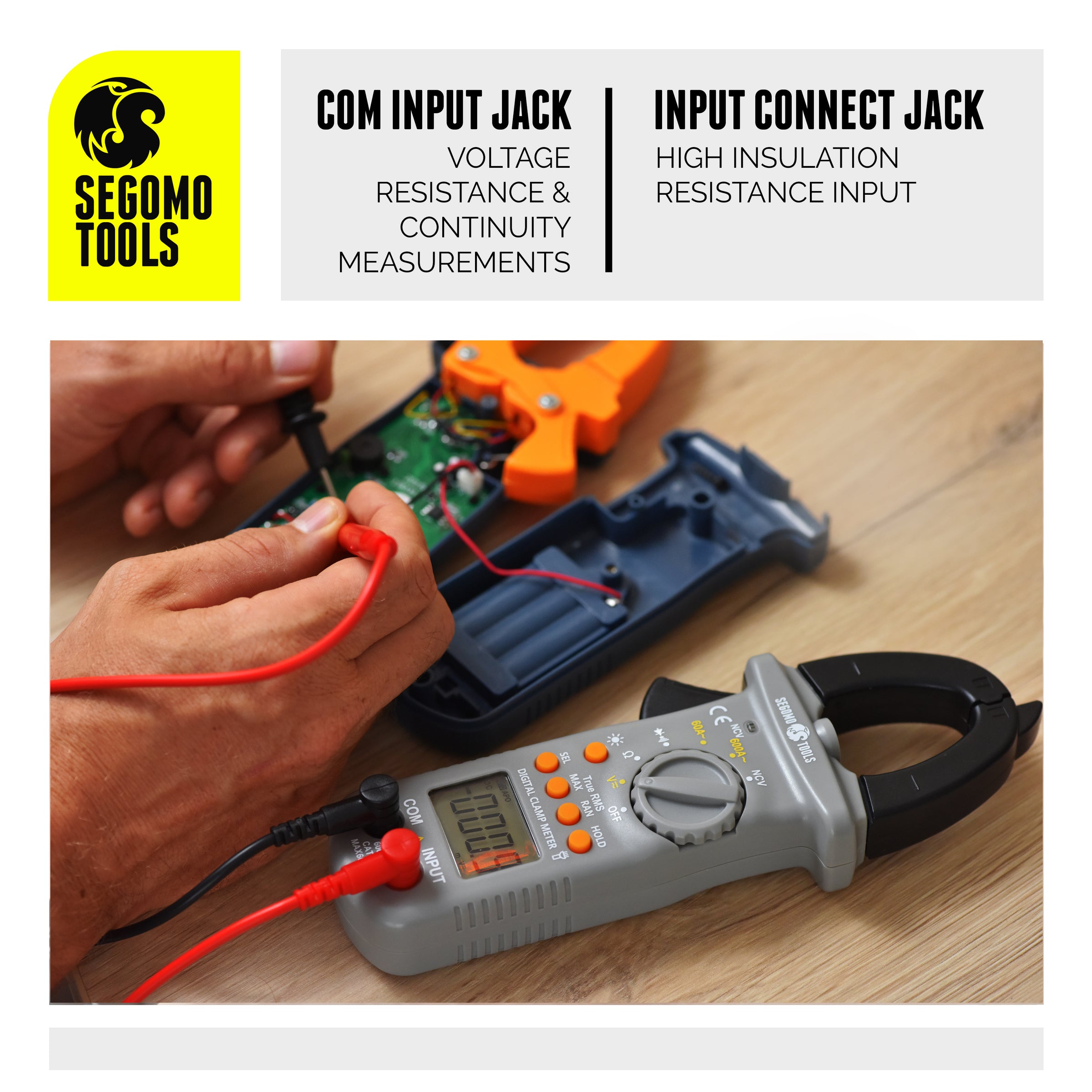

COM Input & High Insulation Resistance Input

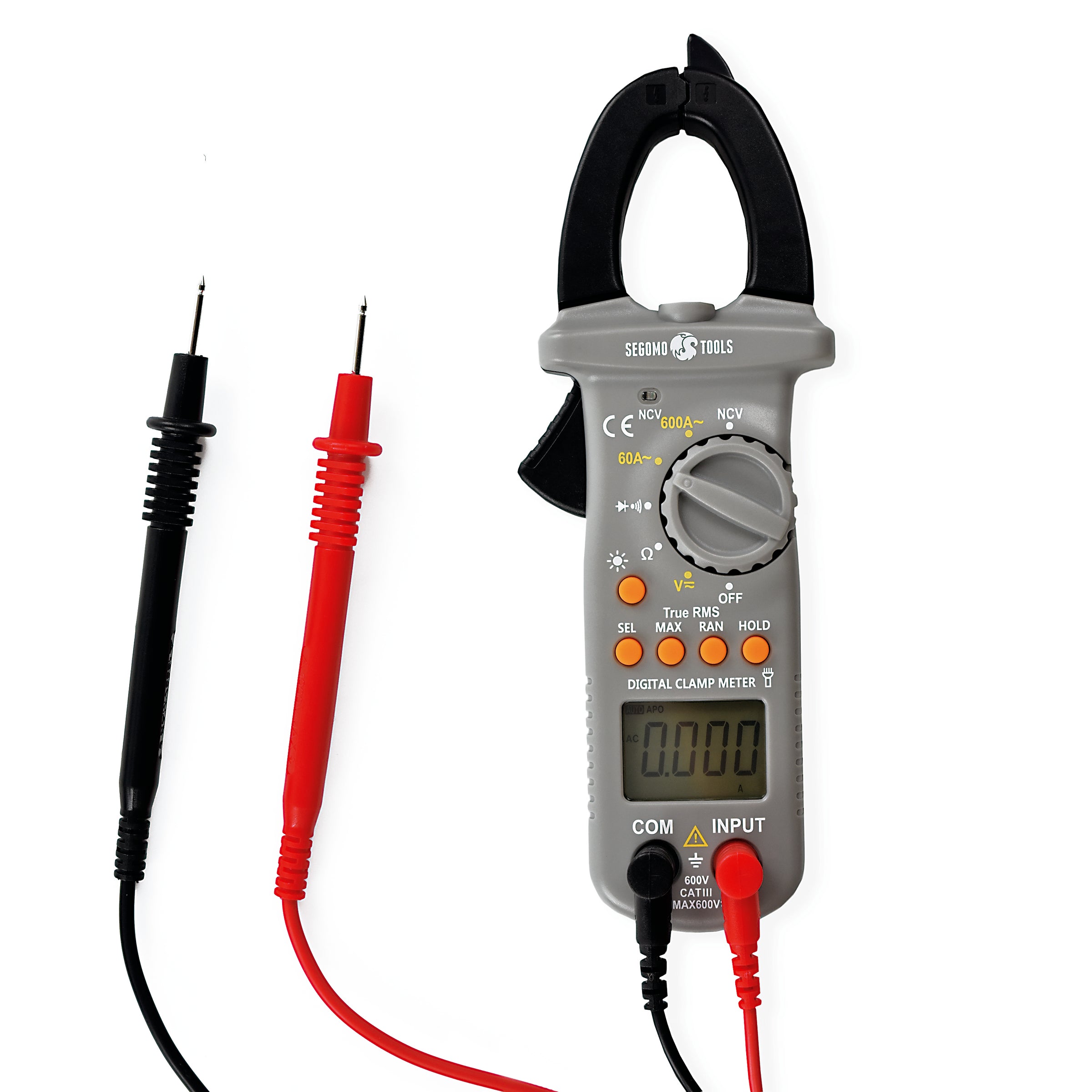

COM input jack for low inputs for all voltage, resistance and continuity measurements. High insulation resistance input connect for all voltage, resistance and continuity measurements e.g. frequency duty cycles. Supplied with a carry bag, test lead, battery and manual.

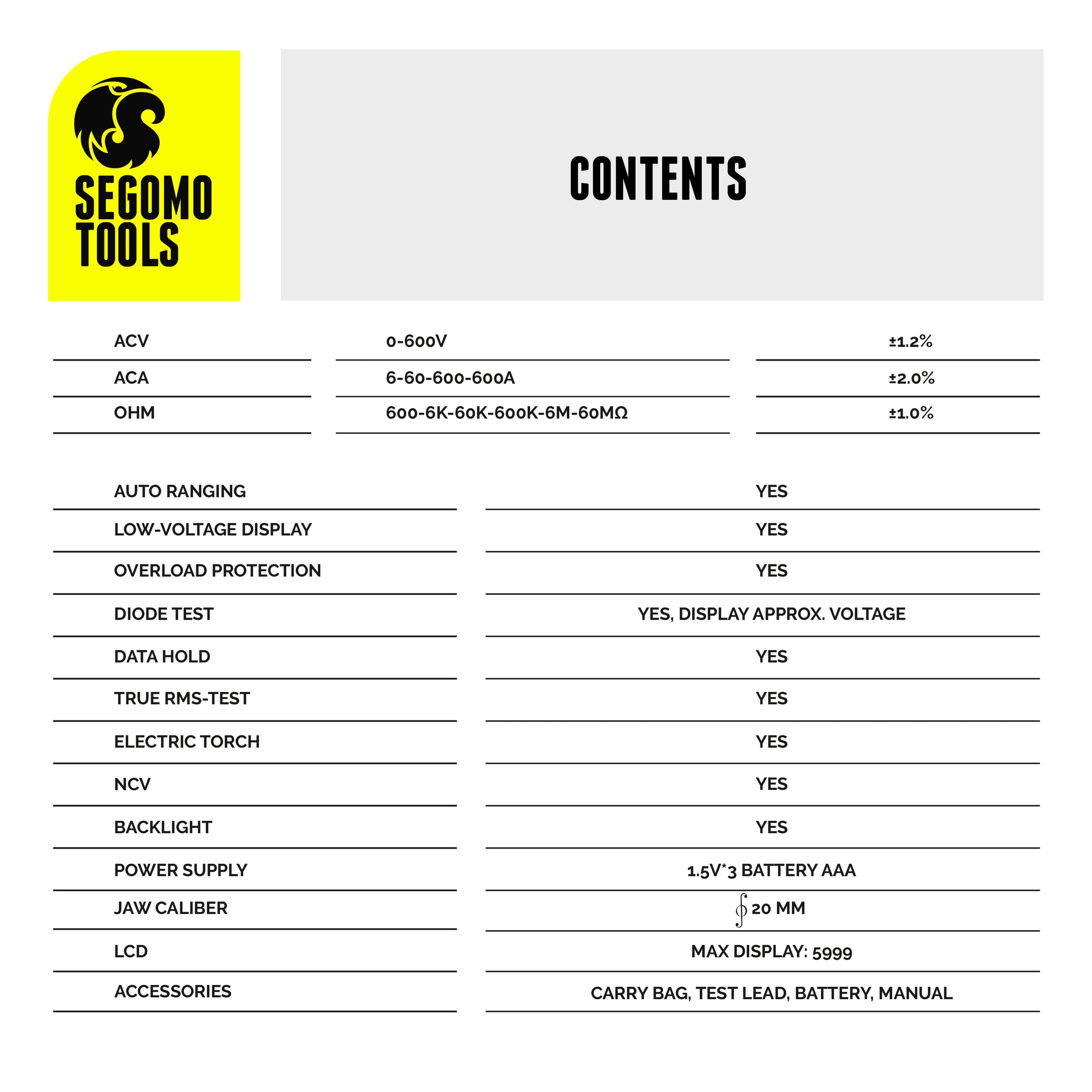

SPECIFICATIONS

TYPE DESCRIPTION

AUTO RANGING

YES

LOW-VOLTAGE DISPLAY

YES

OVERLOAD PROTECTION

YES

DIODE TEST

DISPLAY APPROX. VOLTAGE

DATA HOLD

YES

TRUE-RMS TEST

YES

ELECTRIC TORCH

YES

NCV

YES

BACKLIGHT

YES

POWER SUPPLY

1.5V*3 BATTERY (AAA)

JAW CALIBER

∮20MM

LCD

MAX DISPLAY: 5999

ACCESSORIES

CARRY BAG, TEST LEAD, BATTERY, MANUAL

AC CURRENT (AUTO RANGING)

RANGE RESOLUTION ACCURACY

60A

100mA

±(3.0% of rdg + 5dgts)

60-600A

1A

±(3.0% of rdg + 5dgts)

AC VOLTAGE (AUTO RANGING)

RANGE RESOLUTION ACCURACY

600mV

0.1mV

±(1.2% of rdg + 8dgts)

6V

1mV

±(1.0% of rdg + 8dgts)

60V

10mV

±(1.0% of rdg + 8dgts)

600V

100mV

±(1.2% of rdg + 8dgts)

RESISTANCE (AUTO RANGING)

RANGE RESOLUTION ACCURACY

600Ω

0.1Ω

±(1.5% of rdg + 5dgts)

6KΩ

1Ω

±(1.5% of rdg + 5dgts)

60KΩ

10Ω

±(1.5% of rdg + 5dgts)

600KΩ

100Ω

±(1.5% of rdg + 5dgts)

6MΩ

1KΩ

±(1.5% of rdg + 5dgts)

60MΩ

10KΩ

±(1.5% of rdg + 5dgts)
