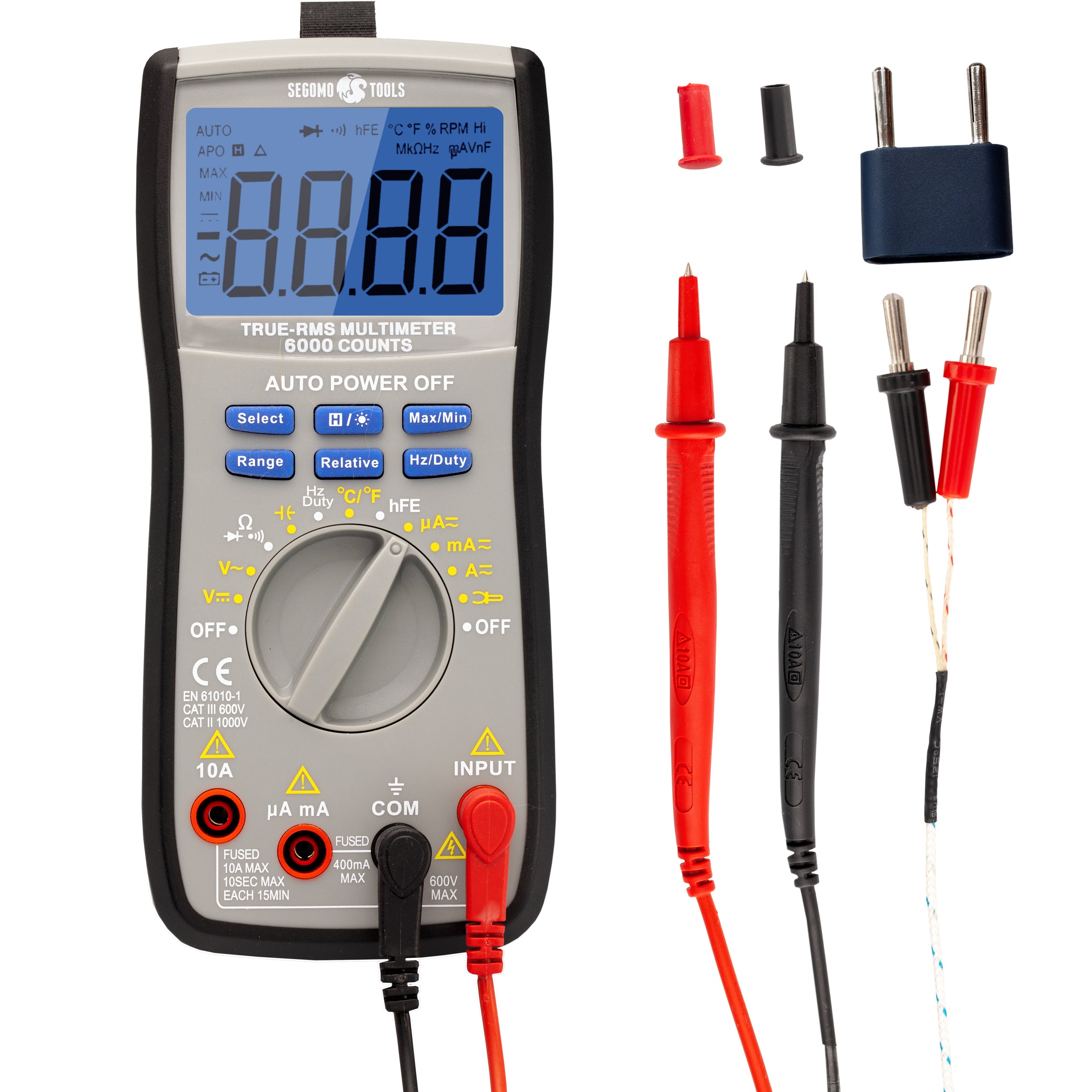

Segomo Tools TRMS 6000 Count Voltage, Current, Resistance, Continuity, Diode, Capacitance, Frequency & Temperature Manual & Auto Ranging Digital Multimeter Tester - DM600


$34.99 USD
DM600-S

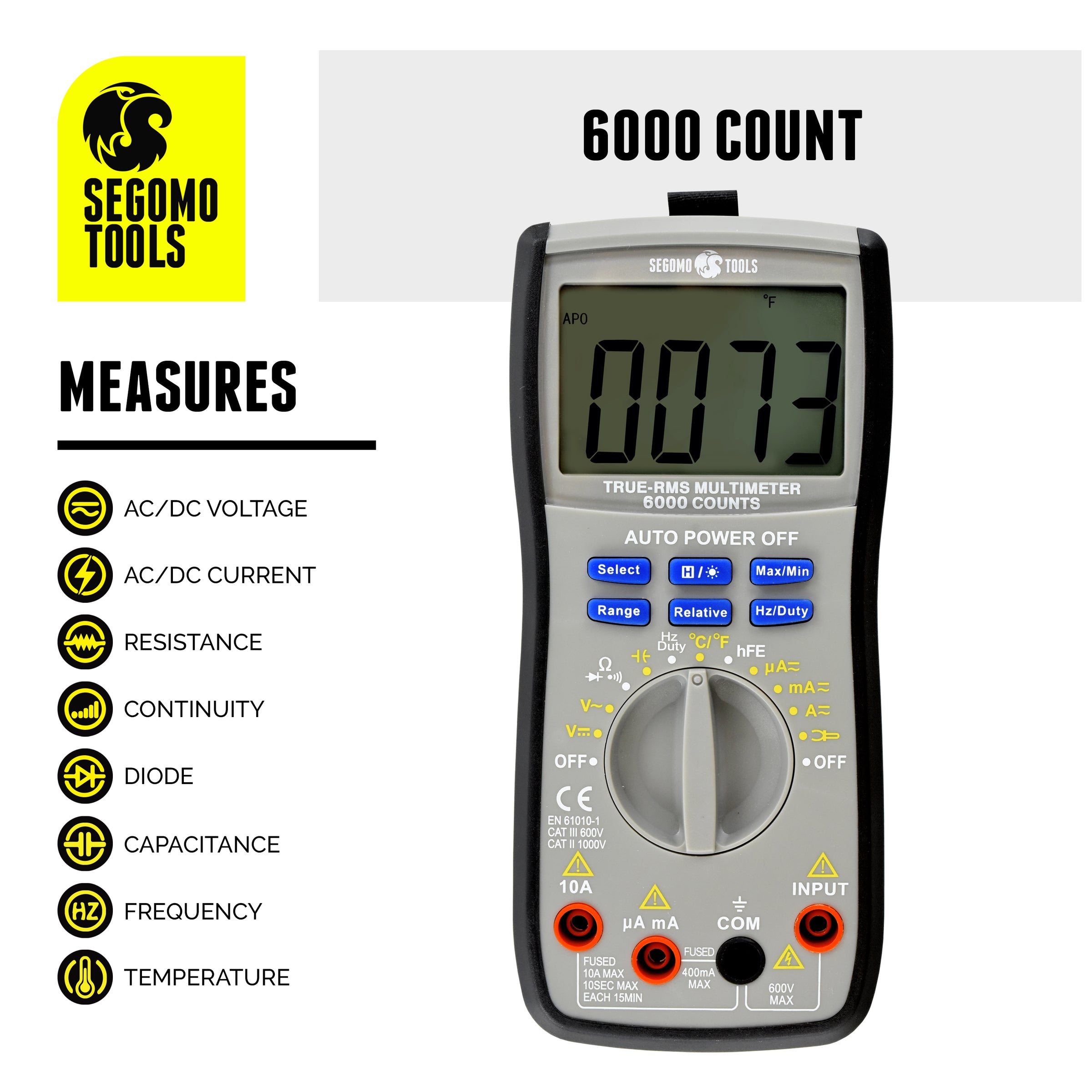

Accurate Measurements

Safely and accurately measures AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode, Capacitance, Frequency and Temperature. Features Auto-Ranging and True RMS for measuring AC Current and Voltage.

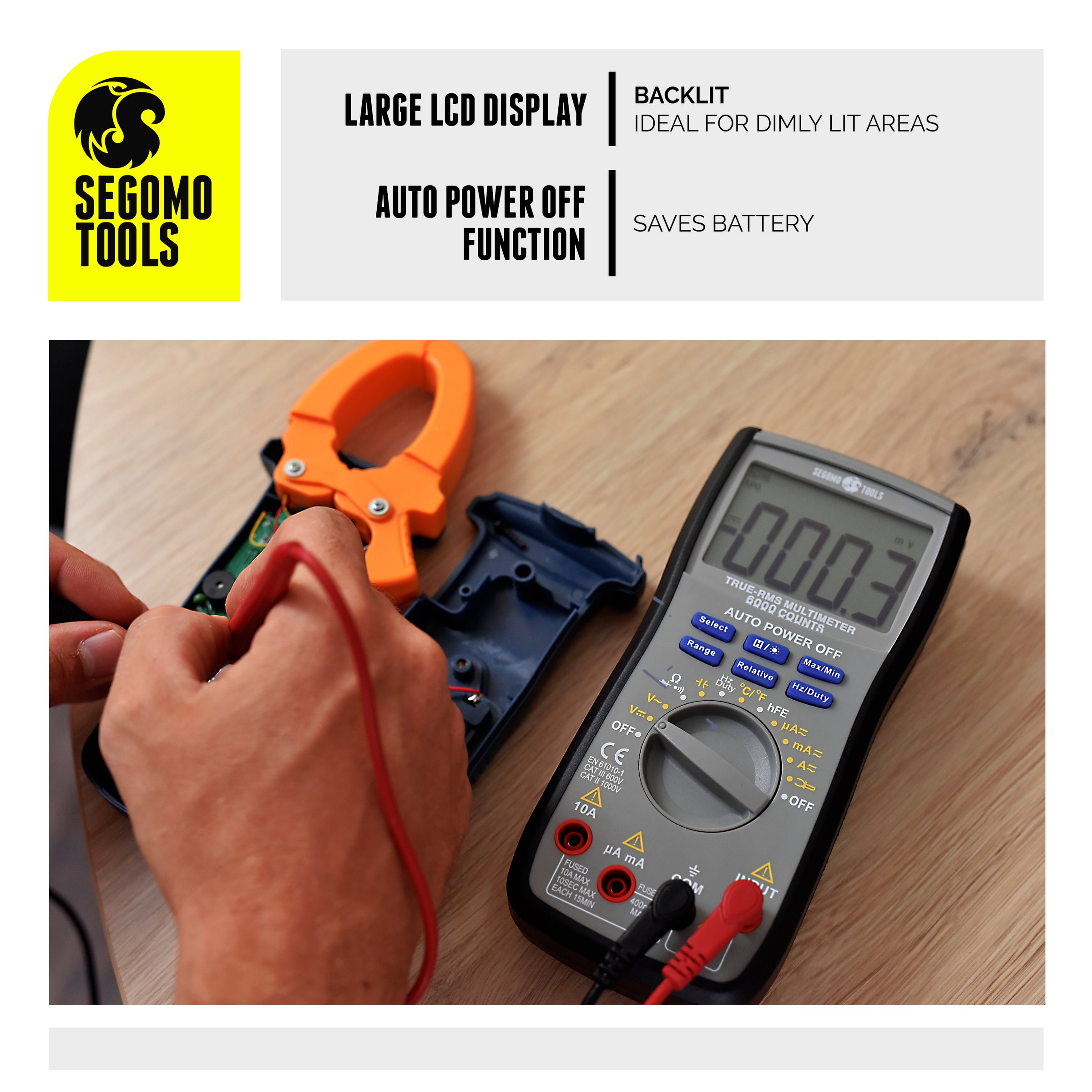

LCD Display

Large backlit LCD display for visibility especially in poorly lit areas. Auto power off function to save battery allowing for longer use.

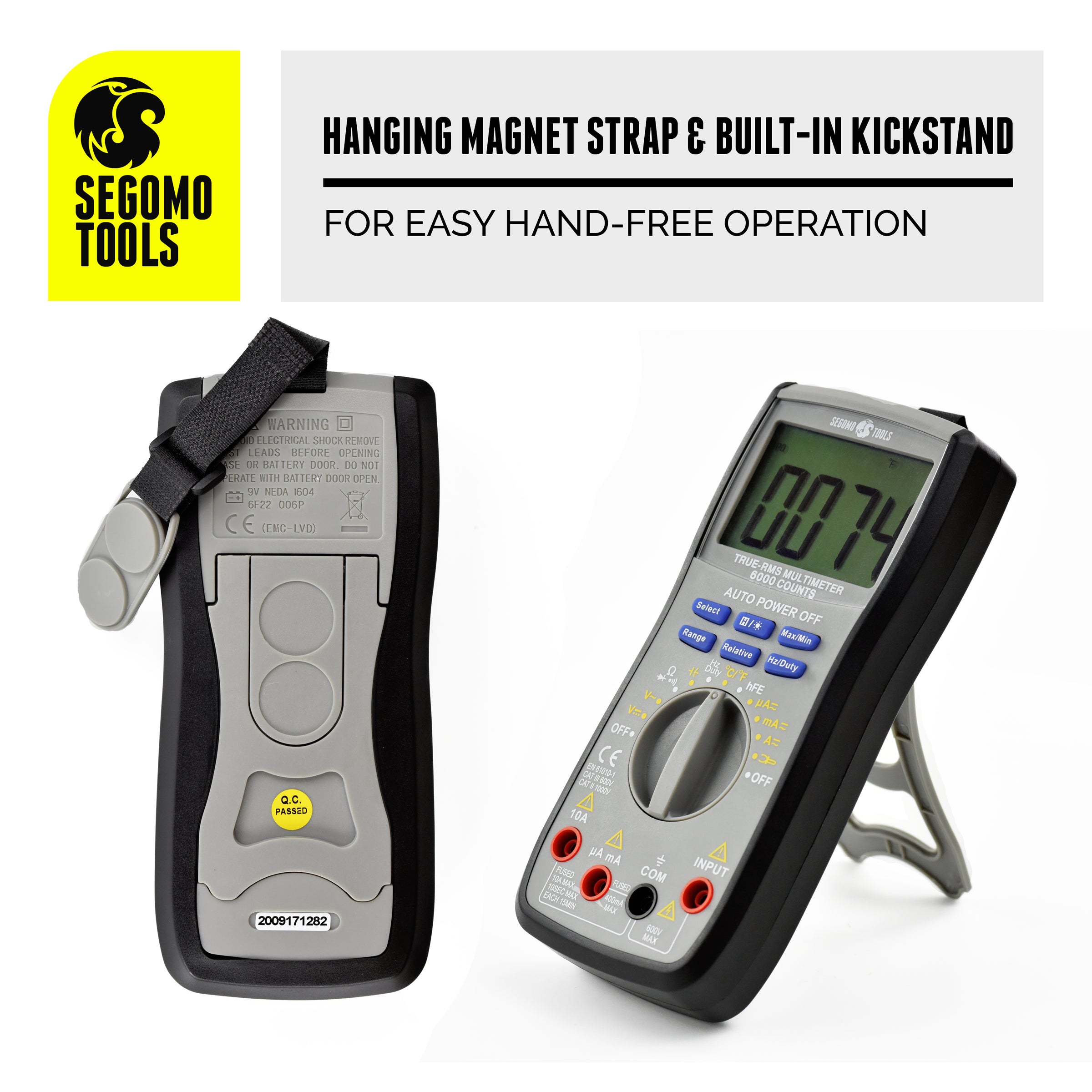

Built-In Kickstand

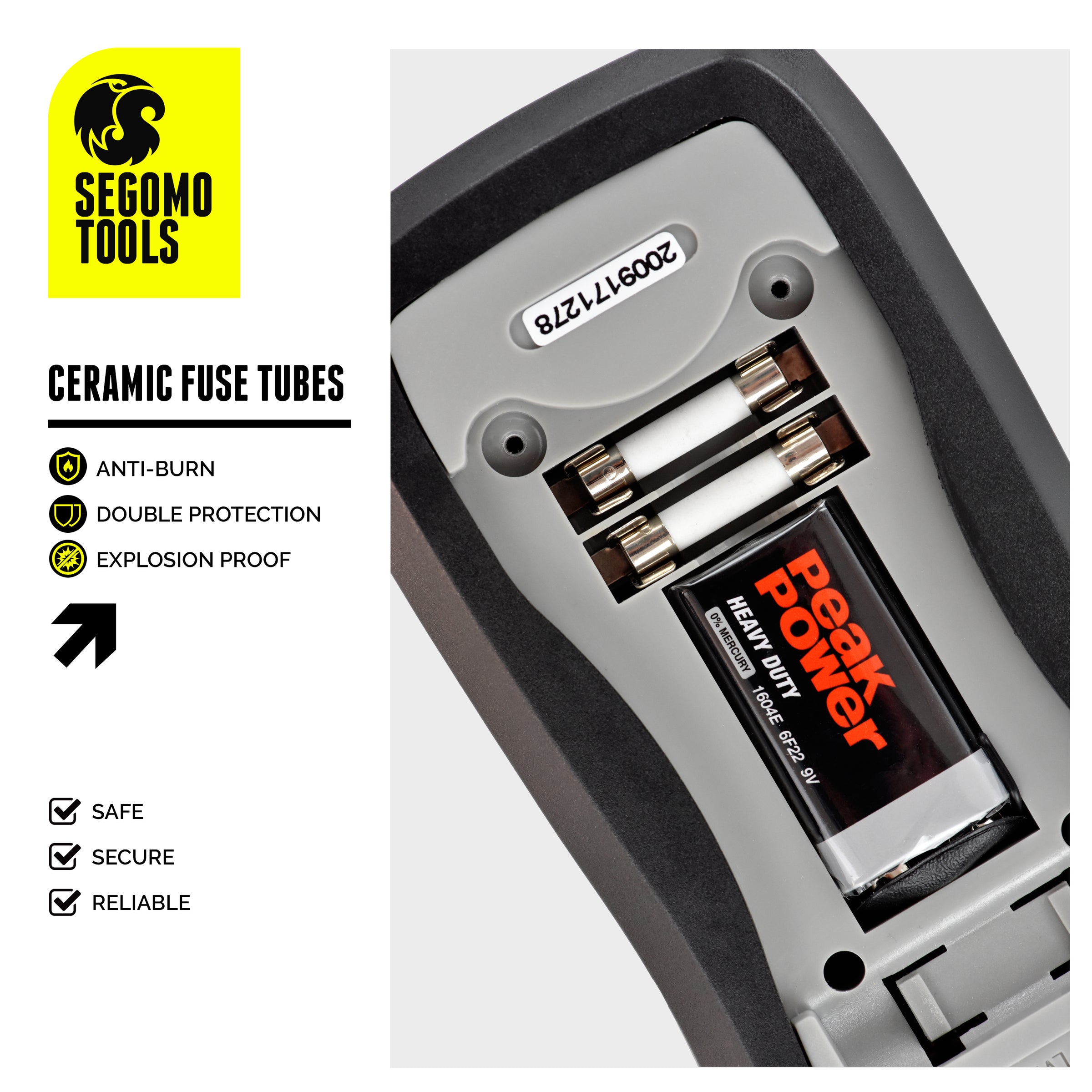

Hanging magnet strap and built-in kickstand for easy hand-free operation. F400mA/600V and F10A/600V anti-burn, double protection explosion-proof ceramic fuse tubes for safety, security and reliability. Overload protection.

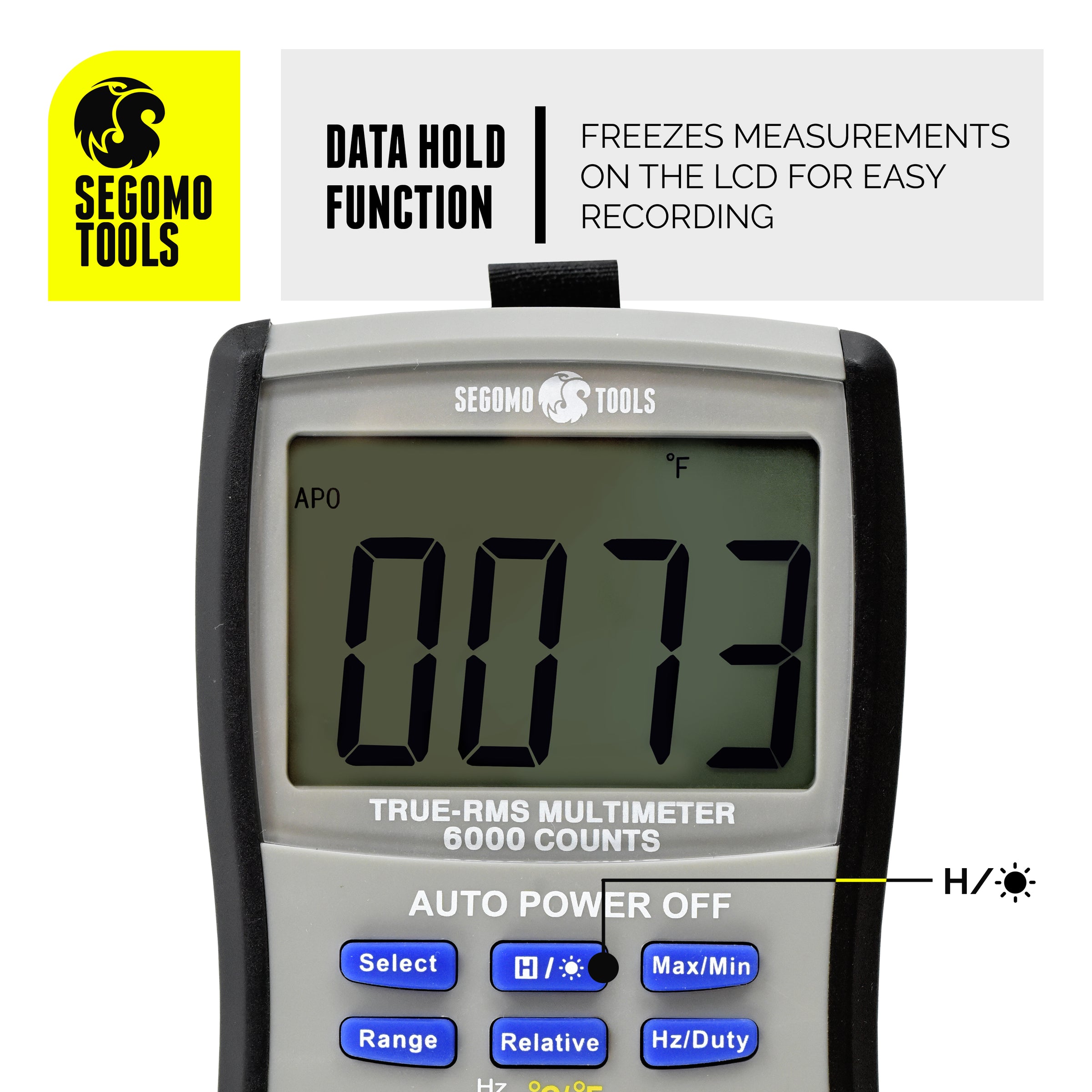

Data Hold Function

Data hold function freezes measurements on the LCD display allowing for easy recording. Multi function socket for measuring capacitors and transistors.

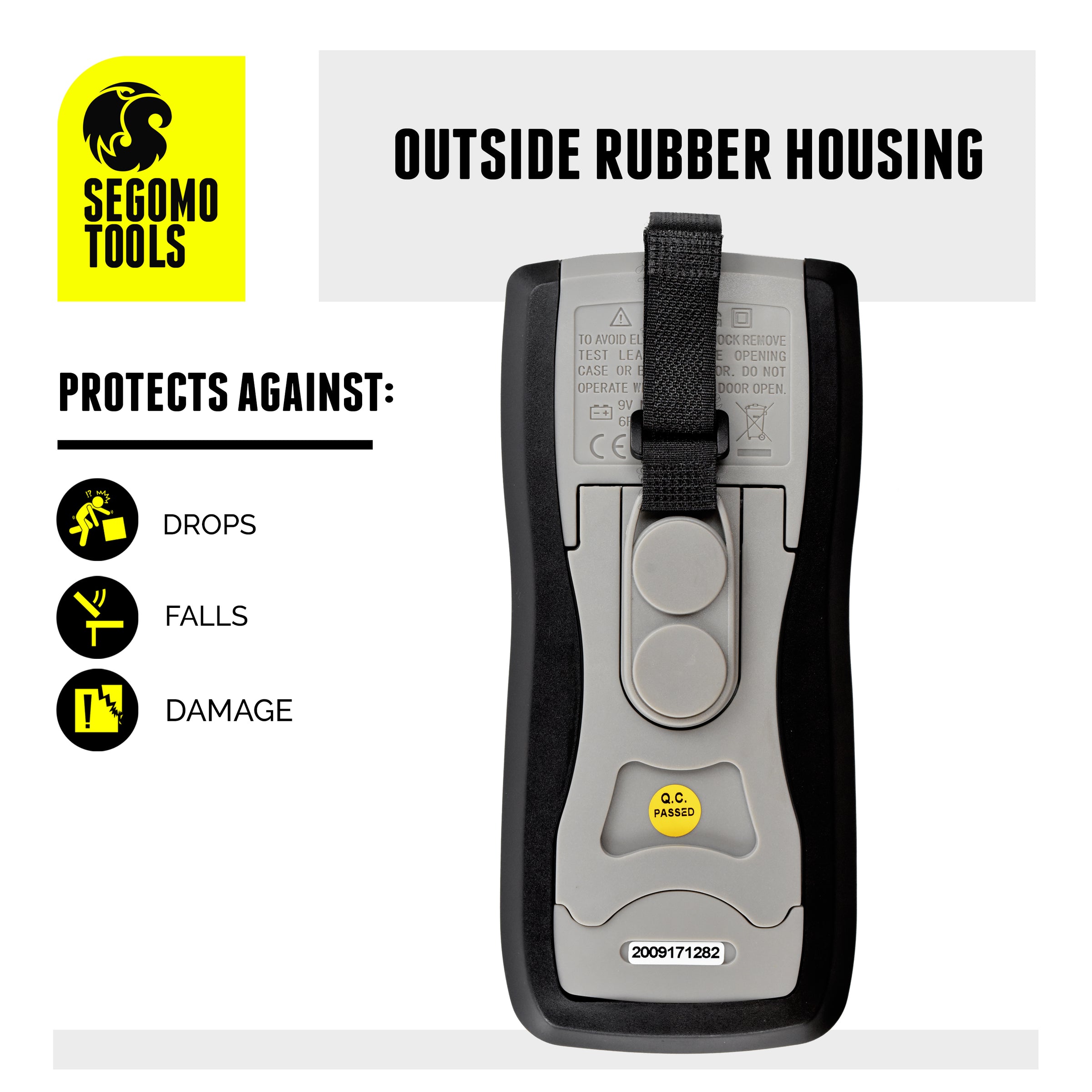

Protective Rubber Housing

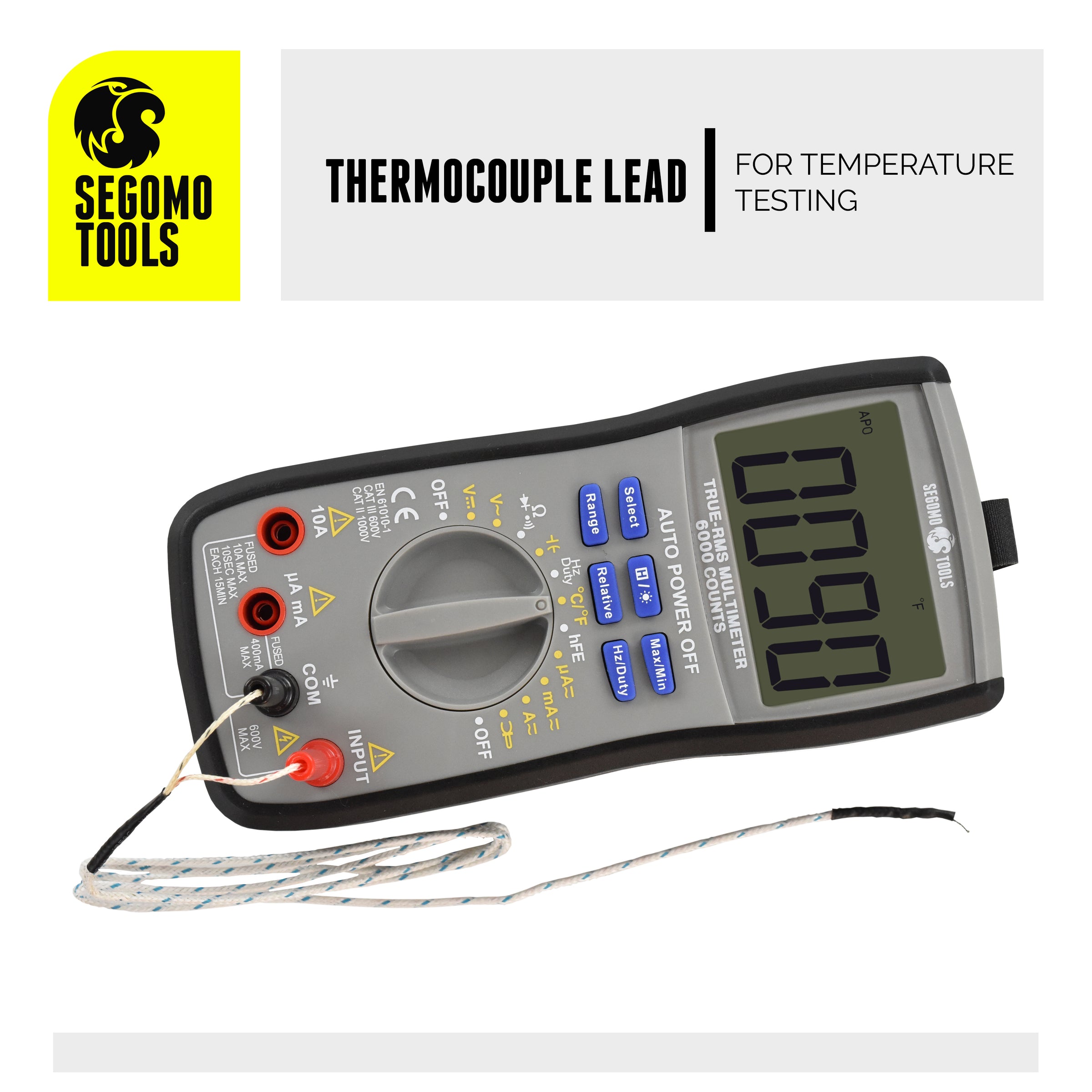

K-Type Thermocouple lead for temperature testing. Protective outside rubber housing to guard against damage from drops or falls. Supplied with test leads and is ideal for professional and commercial use.

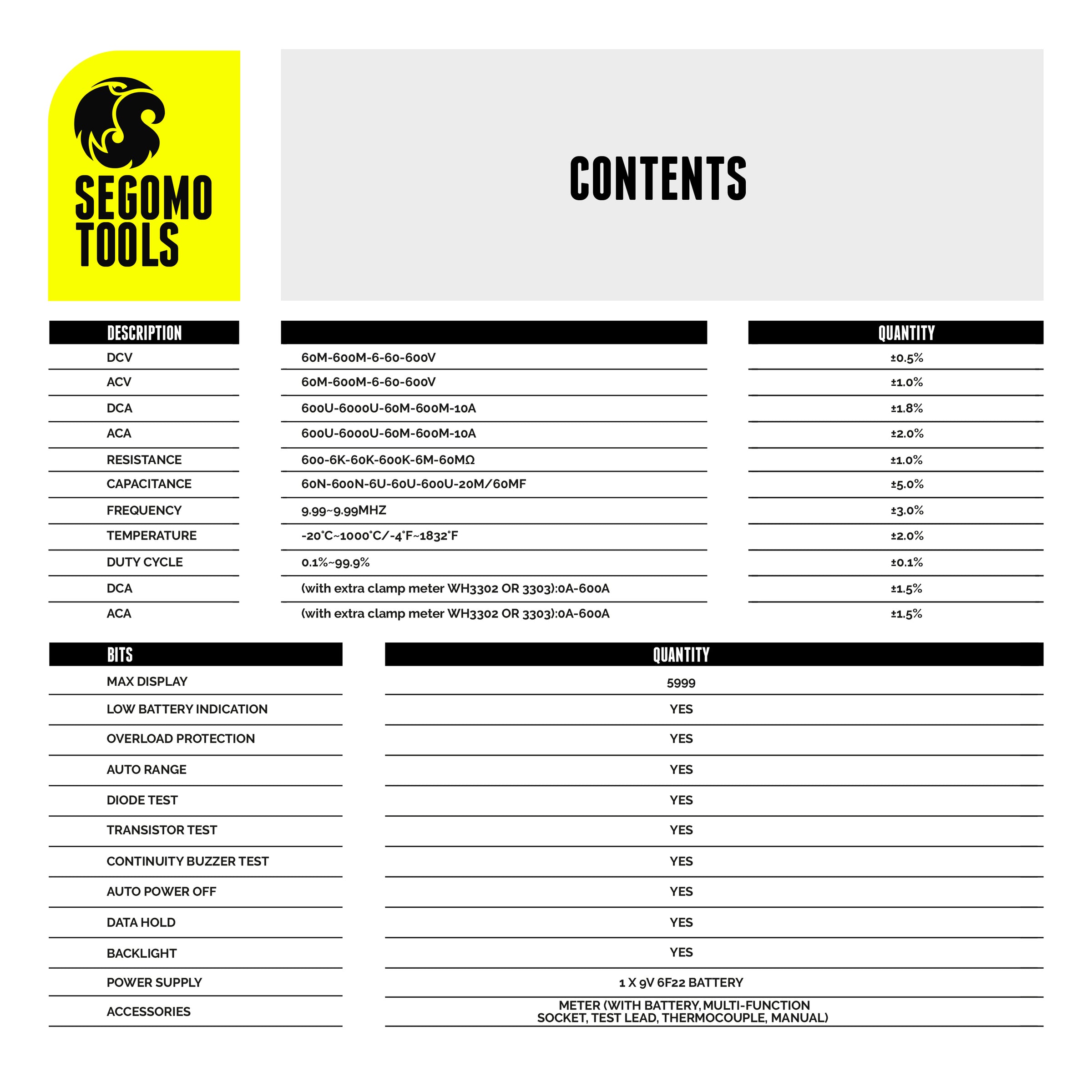

SPECIFICATIONS

TYPE DESCRIPTION

MAX DISPLAY

5999

LOW BATTERY INDICATION

YES

OVERLOAD PROTECTION

YES

AUTO RANGE

YES

DIODE TEST

YES

TRANSISTOR TEST

YES

CONTINUITY BUZZER TEST

YES

AUTO POWER OFF

YES

DATA HOLD

YES

BACKLIGHT

YES

ACCESSORIES

METER (WITH BATTERY, HOLSTER, MULTI-FUNCTION SOCKET,

TEST LEAD, THERMOCOUPLE, MANUAL)

DC VOLTAGE (AUTO RANGING)

RANGE RESOLUTION ACCURACY

600mV

0.1mV

±(0.8% of rdg + 5dgts)

6V

1mV

±(0.8% of rdg + 3dgts)

60V

10mV

±(0.8% of rdg + 3dgts)

1000V

1V

±(1.0% of rdg + 5dgts)

AC VOLTAGE (AUTO RANGING)

RANGE RESOLUTION ACCURACY

600mV

0.1mV

±(1.2% of rdg + 8dgts)

6V

1mV

±(1.2% of rdg + 6dgts)

60V

10mV

±(1.2% of rdg + 6dgts)

600V

100mV

±(1.2% of rdg + 6dgts)

750V

1V

±(1.2% of rdg + 8dgts)

TEMPERATURE

RANGE RANGE ACCURACY

-20 ~1000℃

1℃

20℃~150℃: ±(1% + 4)

-20 ~1000℃

1℃

150℃~1000℃: ±(2% + 3)

-4 ~1832℉

1℉

-4℉~302℉: ±(5% + 4)

-4 ~1832℉

1℉

302℉~1832℉: ±(2.5% + 3)

DC CURRENT

RANGE RESOLUTION ACCURACY

600μA

0.1μA

±(0.8% of rdg + 5dgts)

6000μA

1μA

±(0.8% of rdg + 5dgts)

60mA

10μA

±(0.8% of rdg + 5dgts)

600mA

100μA

±(0.8% of rdg + 5dgts)

6A

1mA

±(1.5% of rdg + 3dgts)

10A

10mA

±(1.5% of rdg + 3dgts)

TRANSISTOR HFE TEST (CONNECT ADAPTER)

RANGE HFE TEST CURRENT TEST VOLTAGE

PNP & NPN

0~1000

lb≈2μA

Vce≈1V

ac current

RANGE RESOLUTION ACCURACY

600μA

0.1μA

±(1.5% of rdg + 8dgts)

6000μA

1μA

±(1.5% of rdg + 8dgts)

60mA

10μA

±(1.5% of rdg + 8dgts)

600mA

100μA

±(1.5% of rdg + 8dgts)

10A

100mA

±(2.0% of rdg + 10dgts)

RESISTANCE (AUTO RANGING)

RANGE RESOLUTION ACCURACY

600Ω

0.1Ω

±(1.5% of rdg + 3dgts)

6KΩ

1Ω

±(1.5% of rdg + 3dgts)

60KΩ

10Ω

±(1.5% of rdg + 3dgts)

600KΩ

100Ω

±(1.5% of rdg + 3dgts)

6MΩ

1KΩ

±(1.5% of rdg + 3dgts)

60MΩ

10KΩ

±(1.5% of rdg + 5dgts)

CAPACITANCE

RANGE RESOLUTION ACCURACY

10nF

10pF

±(8% of rdg + 5dgts)

100nF

100pF

±(8% of rdg + 5dgts)

1uF

1nF

±(8% of rdg + 5dgts)

10uF

10nF

±(8% of rdg + 5dgts)

100uF

100nF

±(8% of rdg + 5dgts)

20mF

10uF

±(8% of rdg + 5dgts)

FREQUENCY (AUTO RANGING)

RANGE ACCURACY

0~10MHz

±(1.0% + 5)
