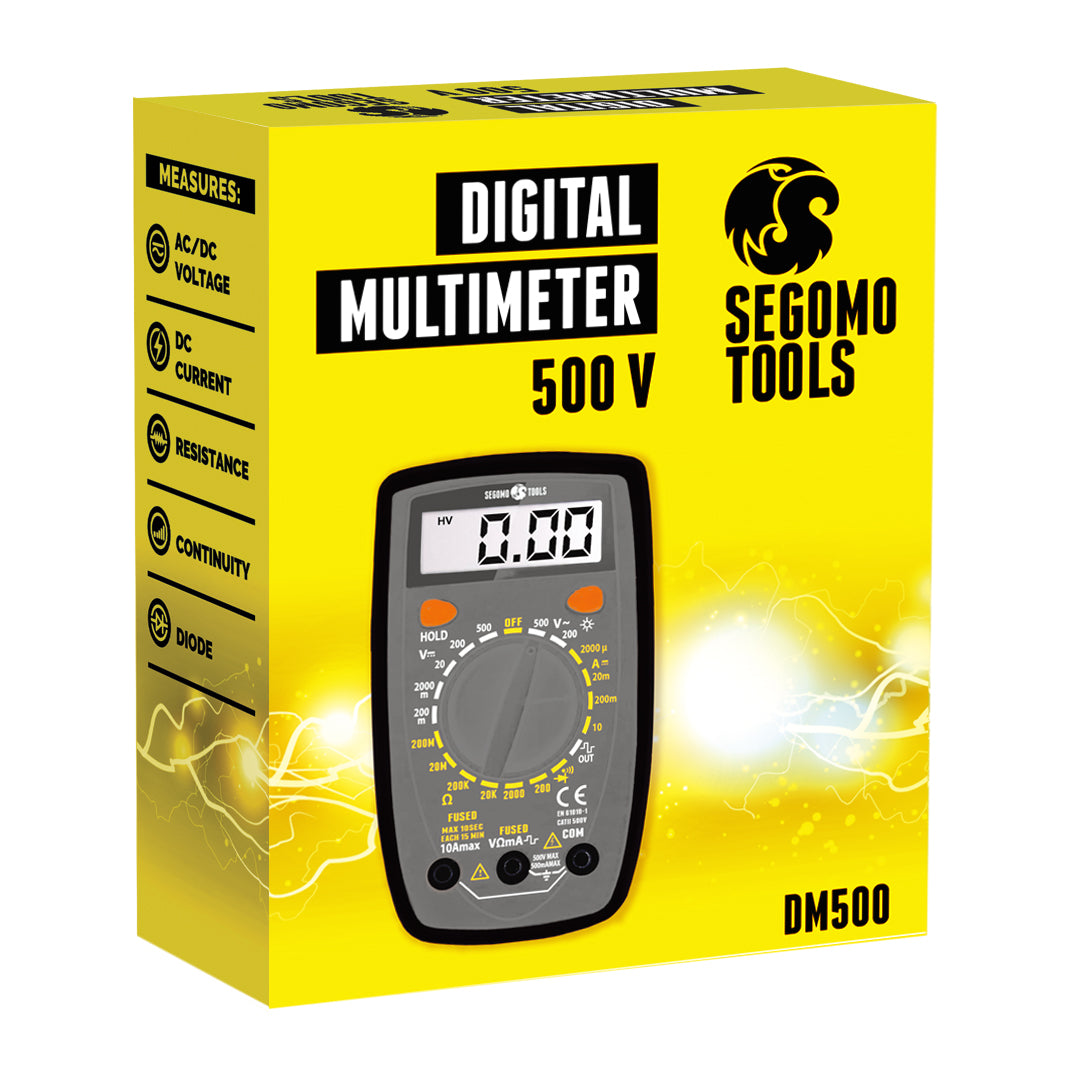

Segomo Tools 500 Volt Amp & Diode Voltage, Resistance & Continuity Digital Multimeter Tester - DM500


Write a review
$13.99 USD
DM500-S

Accurate Measurements

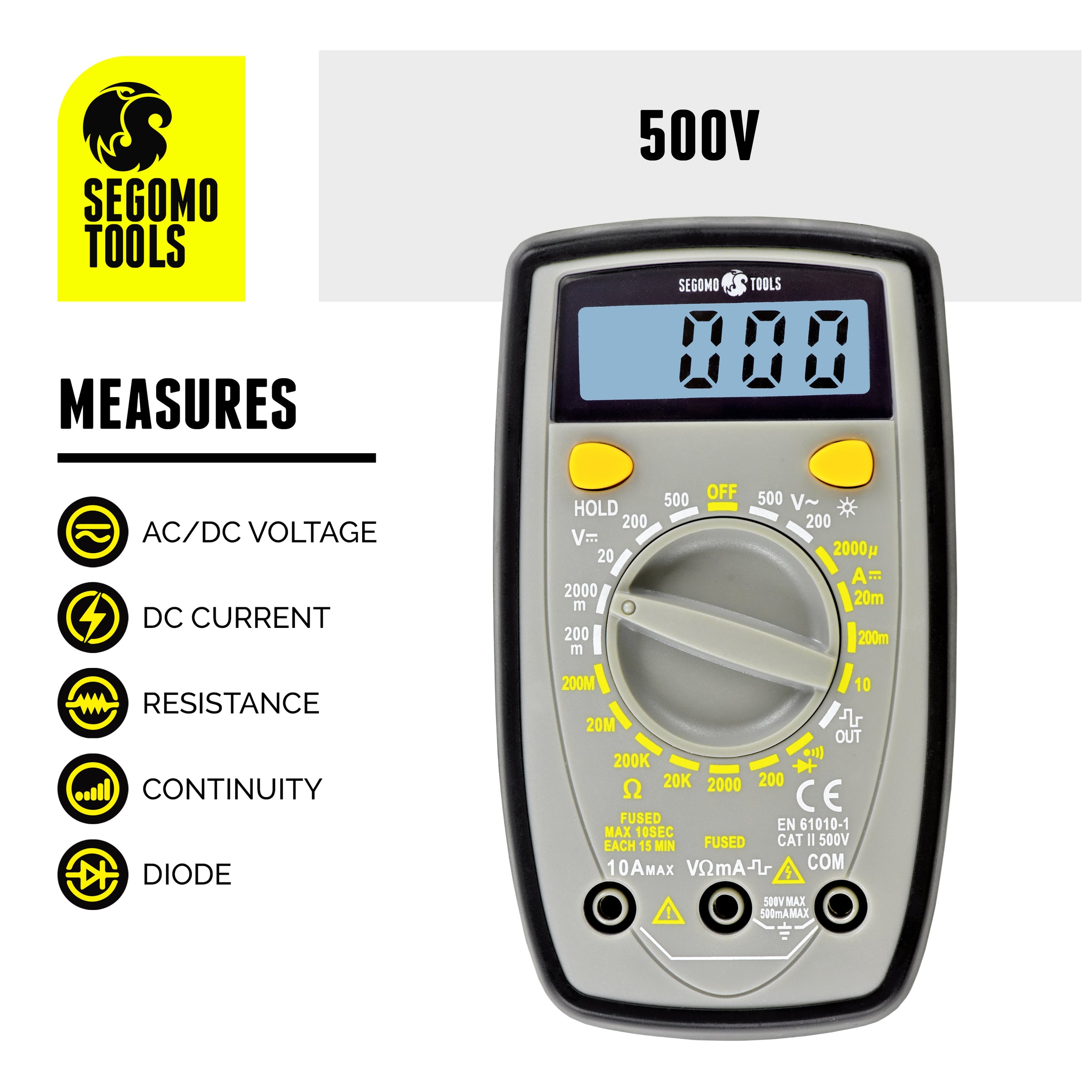

Safely and accurately measures AC/DC Voltage, DC Current, Resistance, Continuity and Diodes and is ideal for automotive and household use. DCV: 200M-2000M-20-200-500V (+/-0.5%). ACV: 200-500V (+/-1.0%). DCA: 2000U-20M-200M-10A (+/-1.8%). OHM: 200-2000-20K-200K-20M-200MΩ (+/-1.0%).

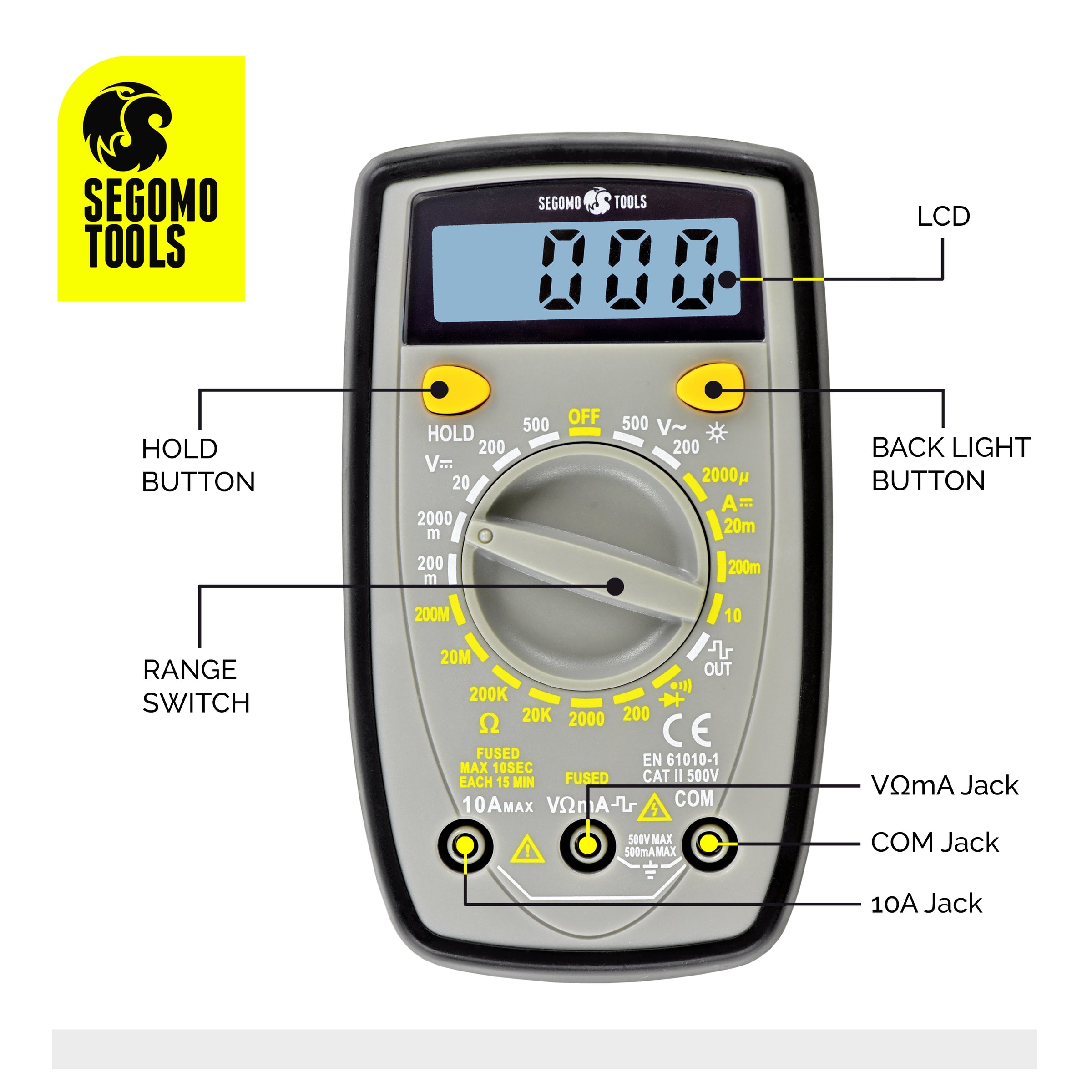

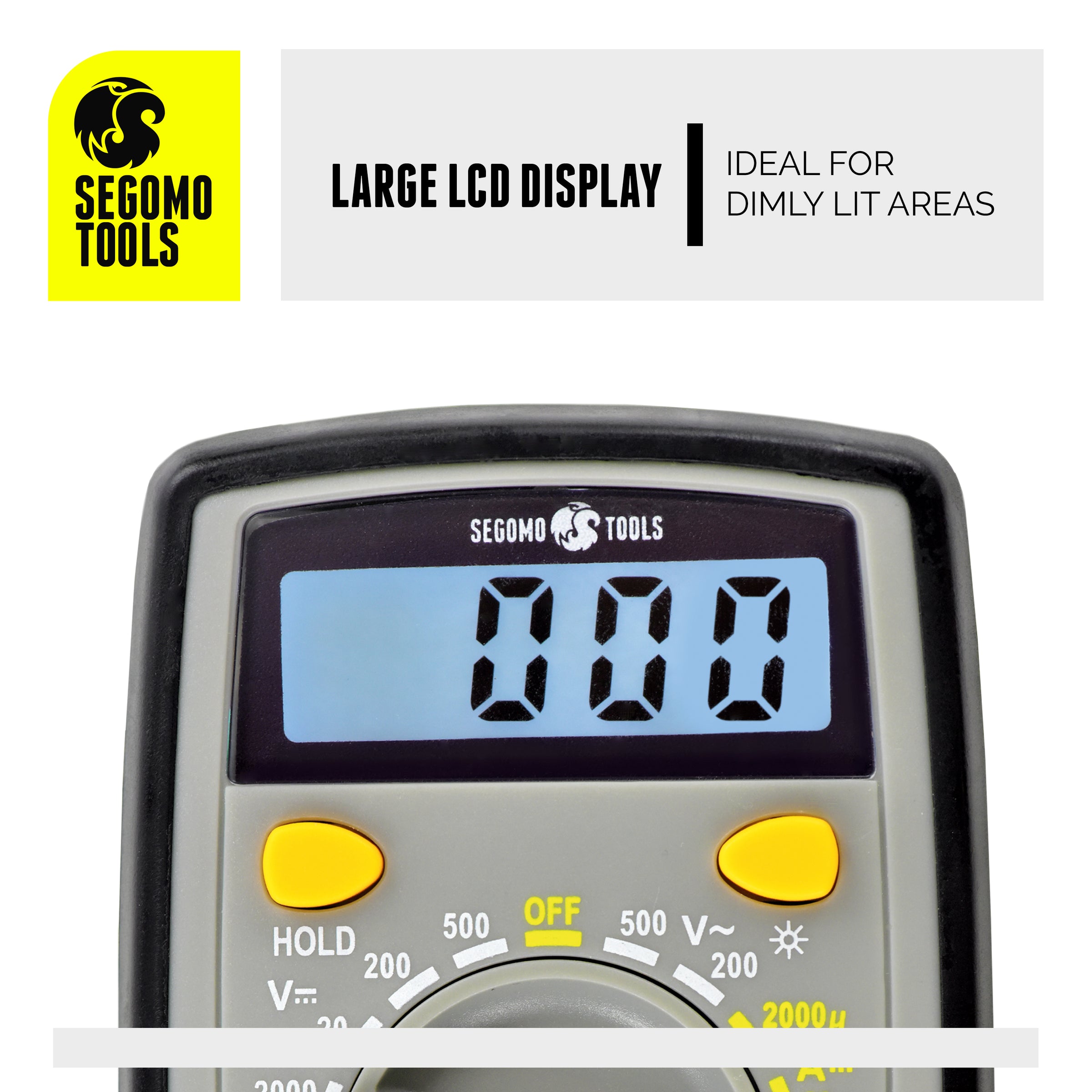

LCD Display

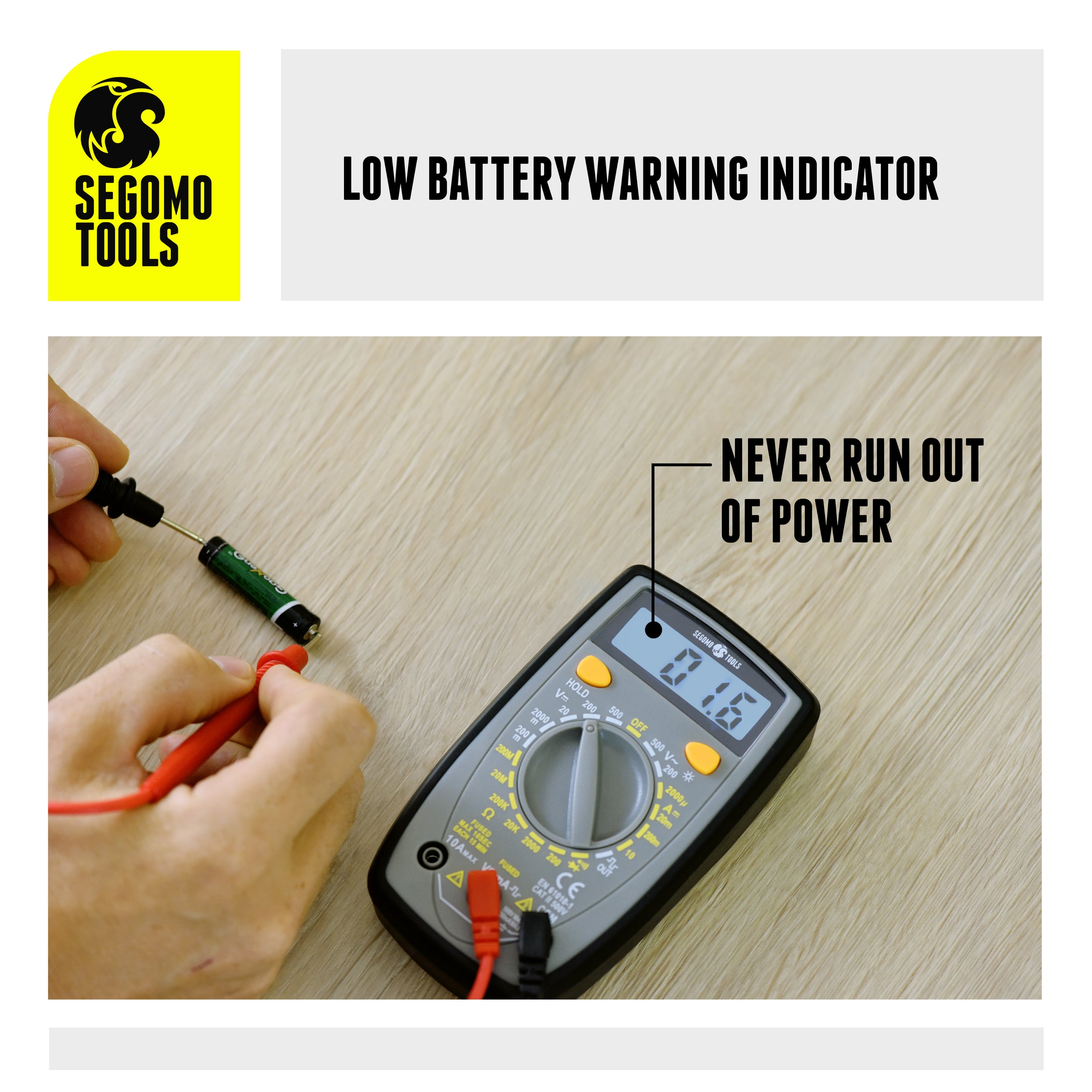

Large backlit LCD display for visibility especially in poorly lit areas. Low battery warning indication allows for quick battery change without the risk of running out of power.

Data Hold Function

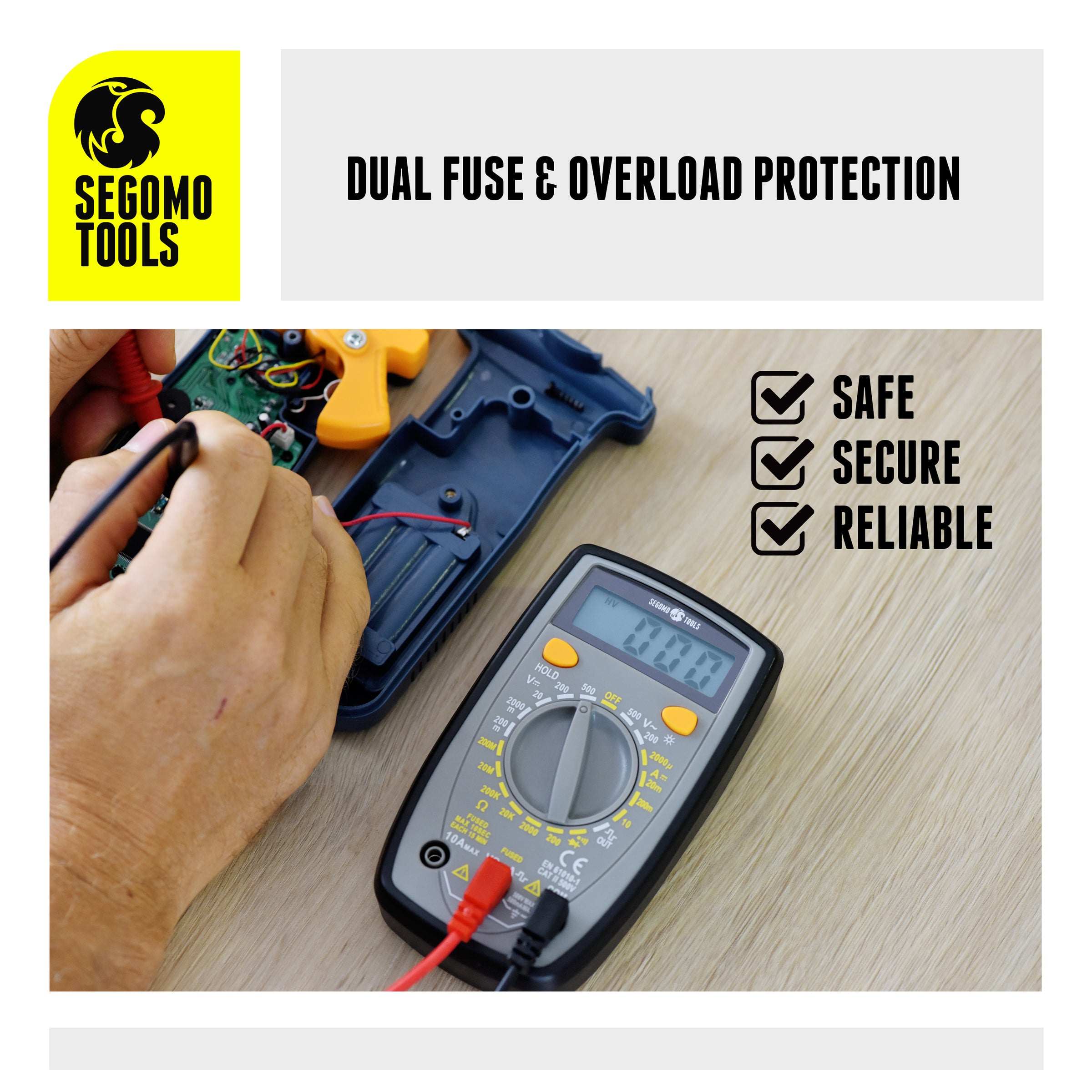

Anti-burn, dual fuse and overload protection for safety, security and reliability. Data hold function freezes measurements on the LCD display allowing for easy recording.

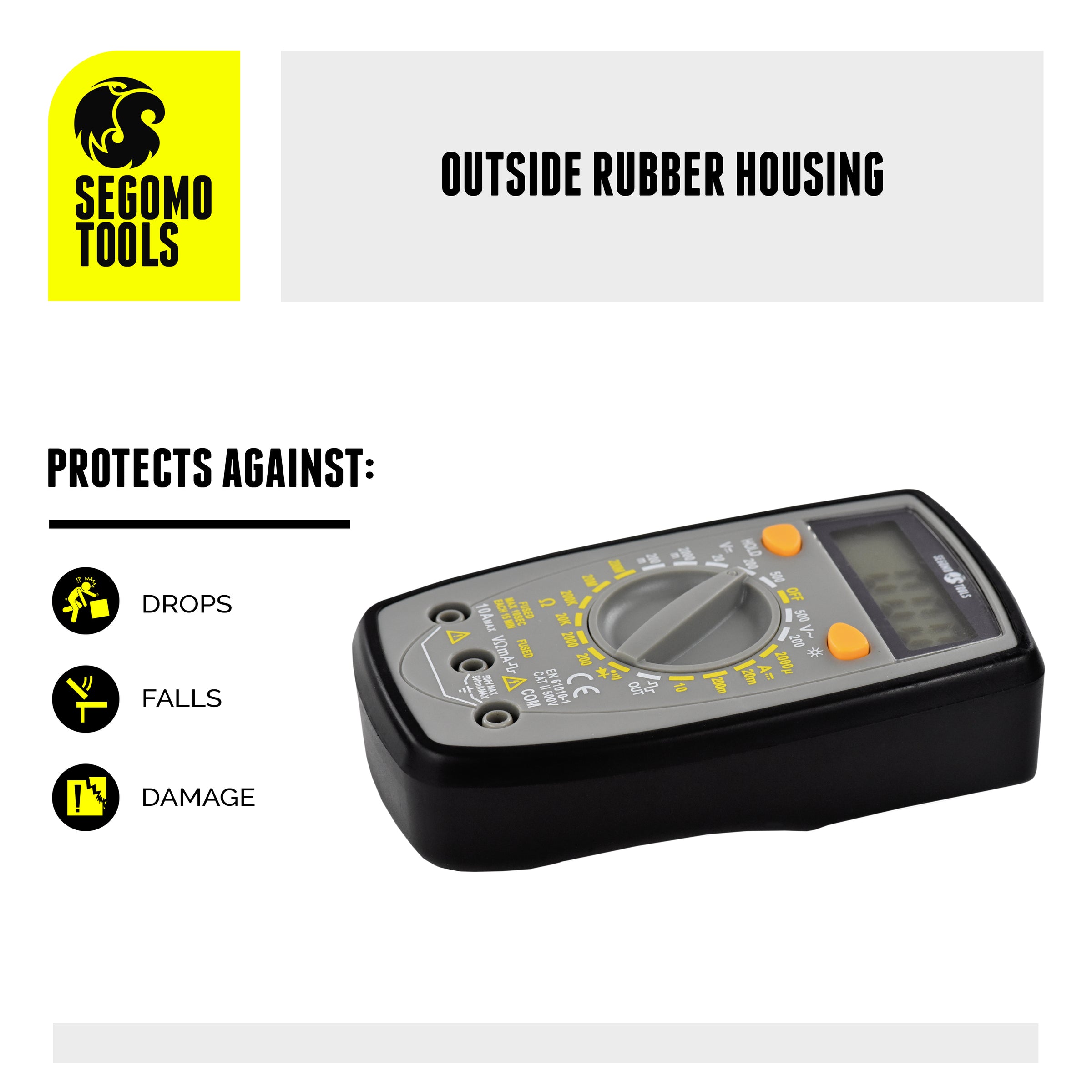

Protective Housing

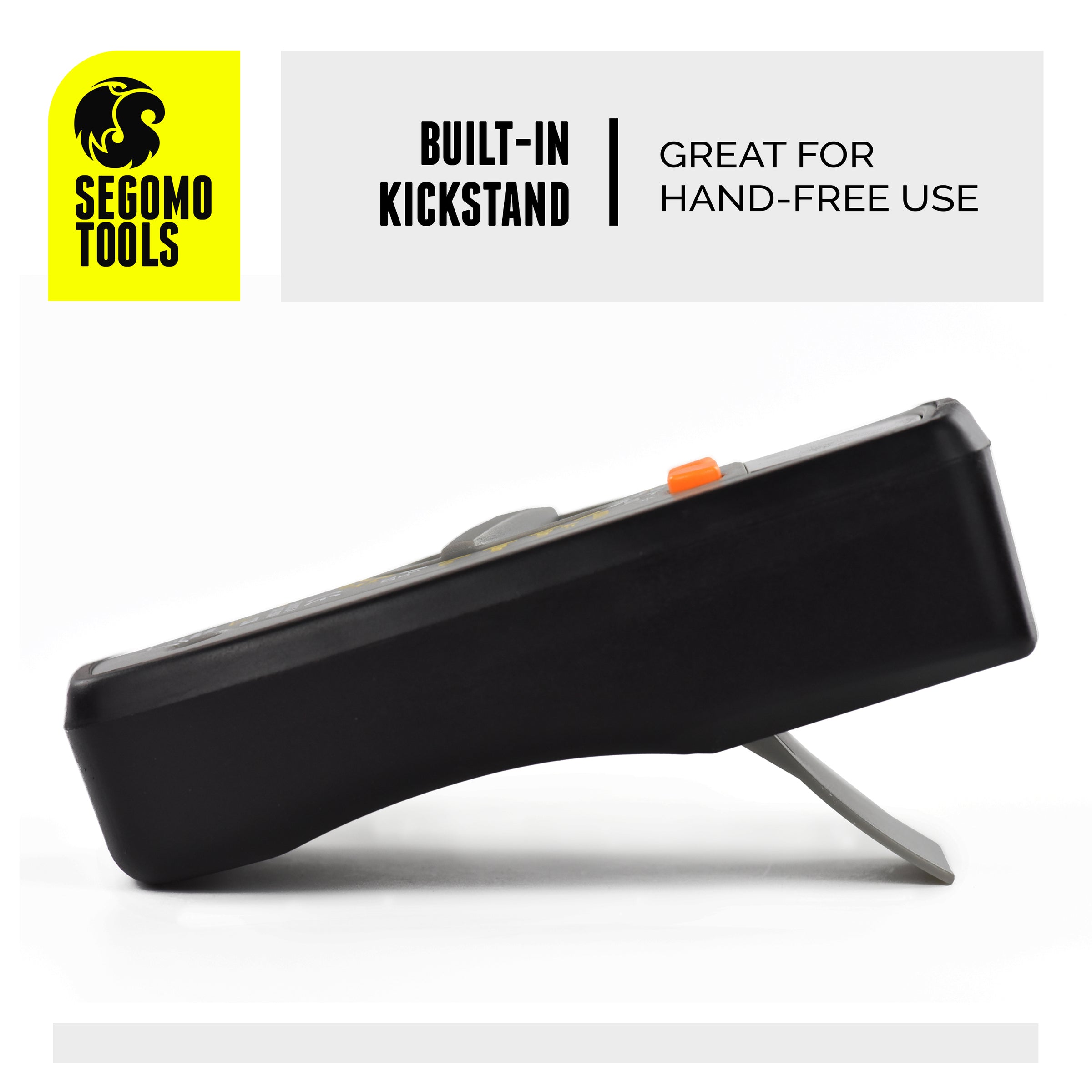

Protective outside rubber housing guards against damage from drops or falls. Built-in kickstand allows for hand free use.

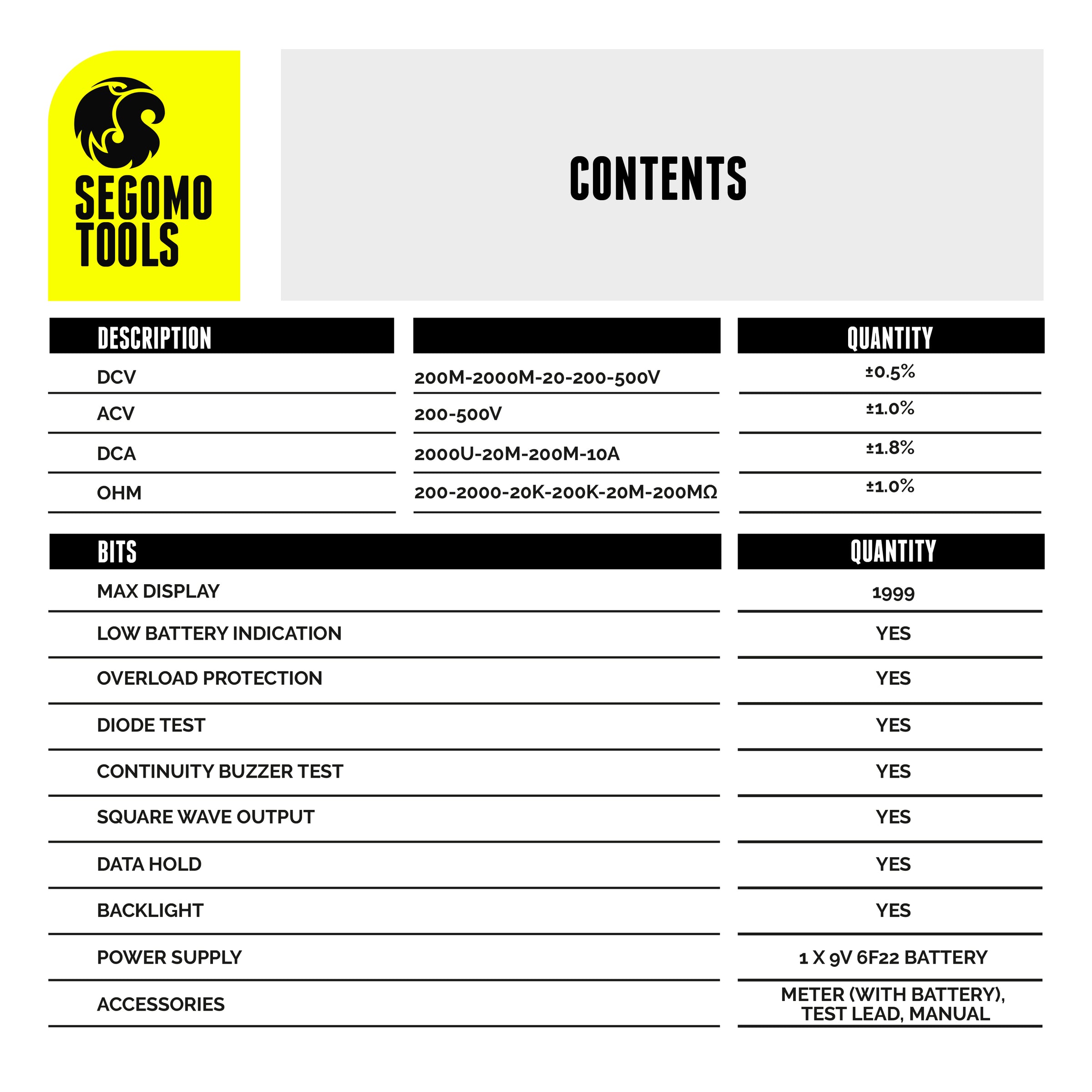

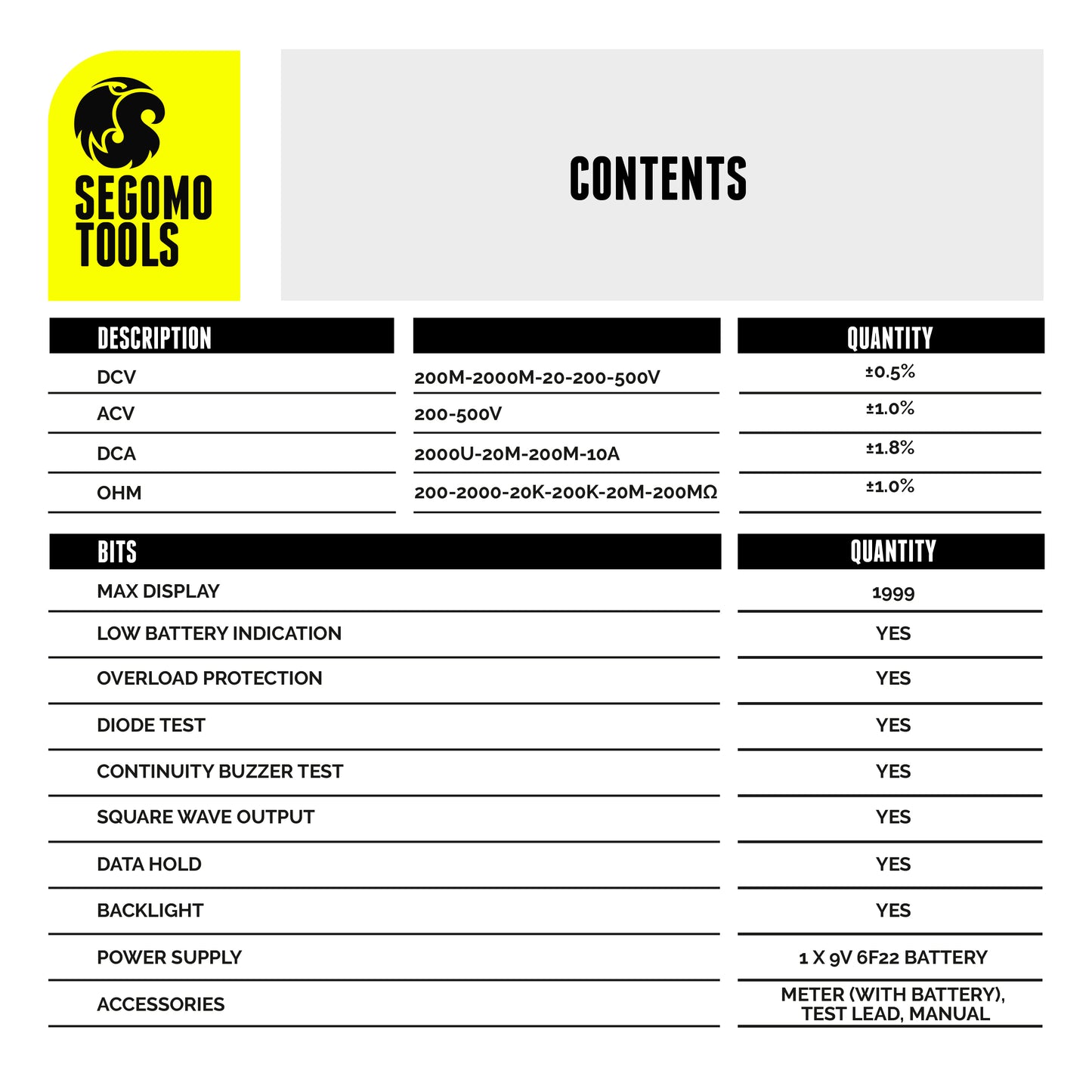

Contents

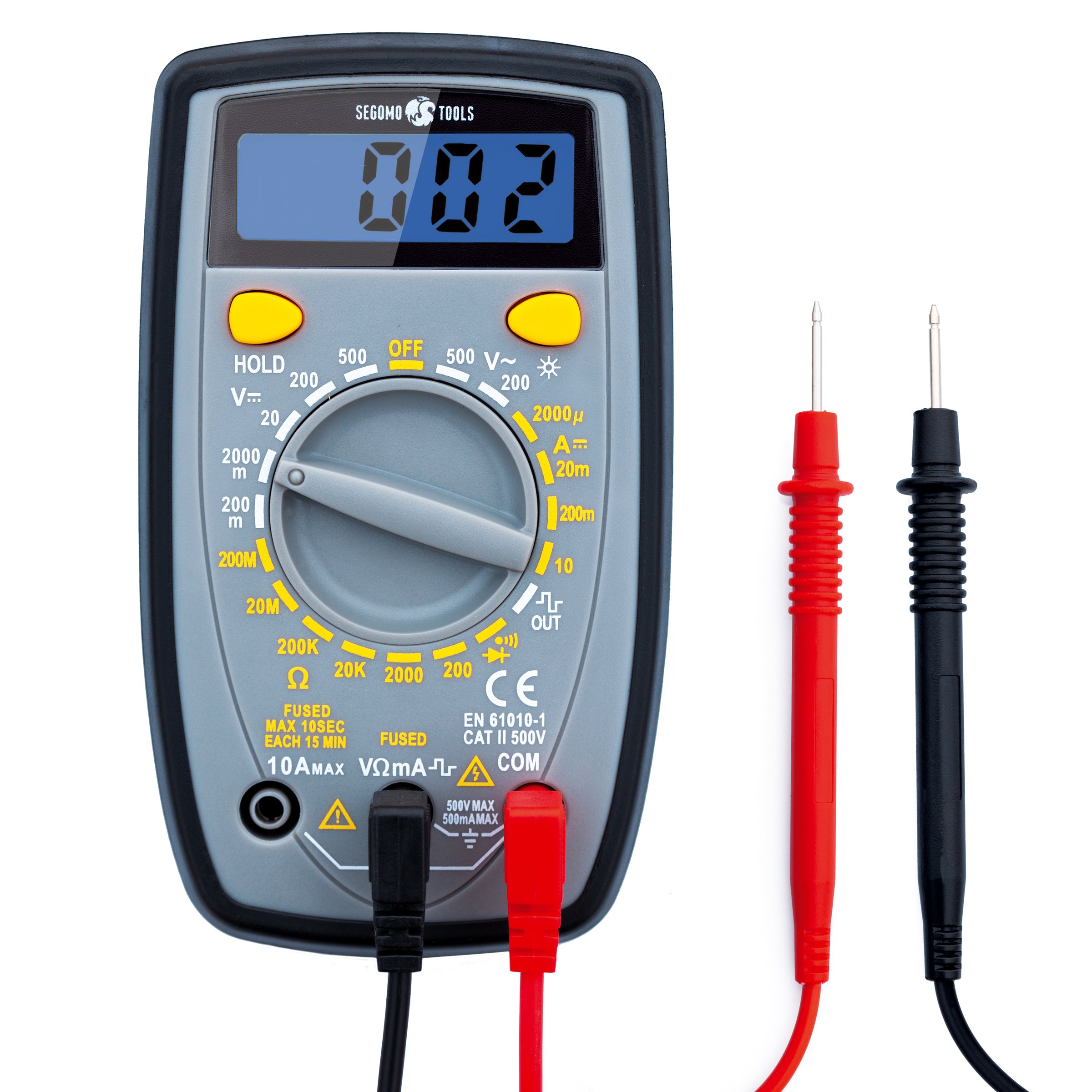

Supplied with a meter (with 1 x 9V 6F22 battery), test lead and manual and is designed for electrical problem troubleshooting and electronics training.

SPECIFICATIONS

TYPE DESCRIPTION

MAX DISPLAY

1999

LOW BATTERY INDICATION

YES

OVERLOAD PROTECTION

YES

DIODE TEST

YES

CONTINUITY BUZZER TEST

YES

SQUARE WAVE OUTPUT

YES

DATA HOLD

YES

BACKLIGHT

YES

POWER SUPPLY

1 X 9V 6F22 BATTERY

ACCESSORIES

TEST LEAD, MANUAL

DC VOLTAGE

RANGE RESOLUTION ACCURACY

200mV

100uV

± (0.5% of rdg + 3D)

2000mV

1mV

± (0.8% of rdg + 5D)

20V

10mV

± (0.8% of rdg + 5D)

200V

100mV

± (0.8% of rdg + 5D)

500V

1V

± (1.0% of rdg + 5D)

AC VOLTAGE

RANGE RESOLUTION ACCURACY

200V

100mV

± (2.0% of rdg + 10D)

500V

1V

± (2.0% of rdg + 10D)

DC CURRENT

RANGE RESOLUTION ACCURACY

200uA

100nA

± (1.8% of rdg + 2D)

2000uA

1uA

± (1.8% of rdg + 2D)

20mA

10uA

± (1.8% of rdg + 2D)

200mA

100uA

± (2.0% of rdg + 2D)

10A

10mA

± (2.0% of rdg + 10D)

RESISTANCE

RANGE RESOLUTION ACCURACY

200Ω

0.1Ω

± (1.0% of rdg + 10D)

2000Ω

1Ω

± (1.0% of rdg + 4D)

20KΩ

10Ω

± (1.0% of rdg + 4D)

200KΩ

100Ω

± (1.0% of rdg + 4D)

20MΩ

10KΩ

± (1.0% of rdg + 10D)

200MΩ

100KΩ

± (5% *(rdg-10) + 10dgts)
